High-Temperature Performance of Silicone O-Rings

For glass packed columns, the seal between the column and the injector is technically vital. GL Sciences provides P-type O-rings made from heat-resistant silicone. These components are engineered to remain flexible at temperatures up to 280°C, ensuring a consistent seal during oven temperature ramping. Technically, while curing begins around 300°C, these O-rings are designed for minimal adhesion to the glass surface, preventing damage to the column ends during replacement and maintaining the integrity of the pneumatic system.

Deactivated Wool Options for Column End-Plugs

Securing the stationary phase within a packed column requires a "plug" that is chemically inert. GL Sciences offers Quartz, Glass, and PTFE wool for this technical purpose. Technically, the deactivation of the wool is essential to prevent the adsorption of polar analytes or the catalytic degradation of sensitive compounds at the interface of the column. The choice of material—such as Quartz for ultra-high temperature or PTFE for extreme chemical resistance—allows analysts to tailor the column setup to the specific reactivity of their sample.

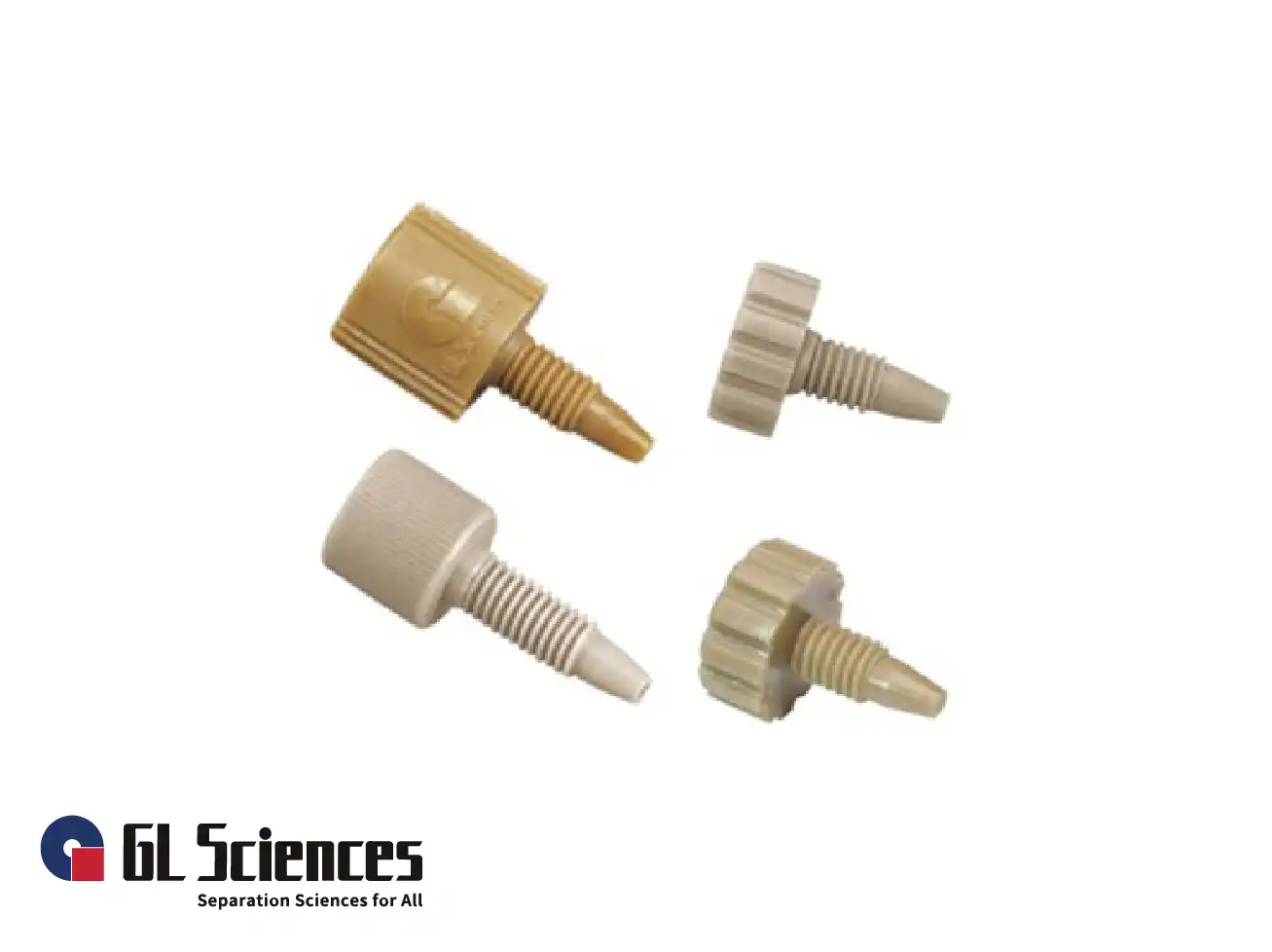

Precision Column Adapters for Multi-Brand Compatibility

Packed columns often require specific hardware to interface with different GC models. GL Sciences manufactures a range of adapters, including SUS (Stainless Steel) and glass column installation kits. These adapters are technically designed to ensure a seamless transition from the column to the injector or detector (e.g., FID). By using precision-machined liners and spacers, these adapters eliminate dead volumes that could otherwise cause turbulent flow and compromise the theoretical plate count of the packed system.

Specialized Packing Funnels for Uniform Bed Density

The efficiency of a packed column is technically dependent on the uniformity of the packing bed. GL Sciences provides specialized packing funnels for both glass and stainless steel (SUS) columns. These tools facilitate the controlled introduction of the stationary phase, which, when combined with vibration or vacuum techniques, ensures a dense and stable bed. Technically, preventing voids or channels within the packing is critical for maintaining reproducible retention times and avoiding peak splitting.

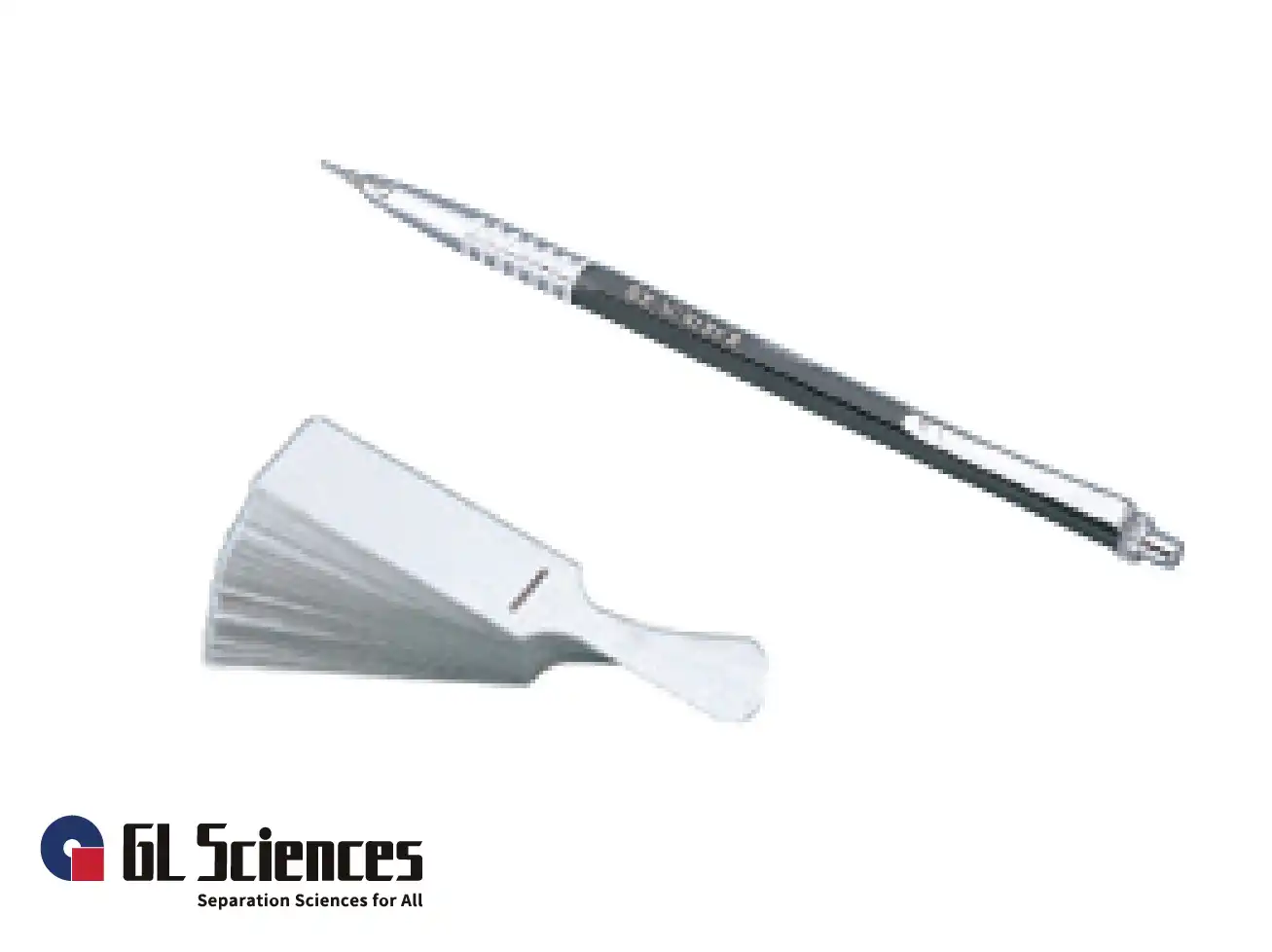

Technical Identification with Heat-Resistant Tags

Traceability is a technical requirement in regulated laboratories. GL Sciences offers column nameplates and tags that are designed to withstand the cyclic heating of a GC oven. When marked with the specialized iron pen, these tags provide a permanent, legible record of the column's phase, dimensions, and maximum temperature limits. This prevents the risk of using a column beyond its thermal stability range, which could lead to stationary phase bleed and detector contamination.

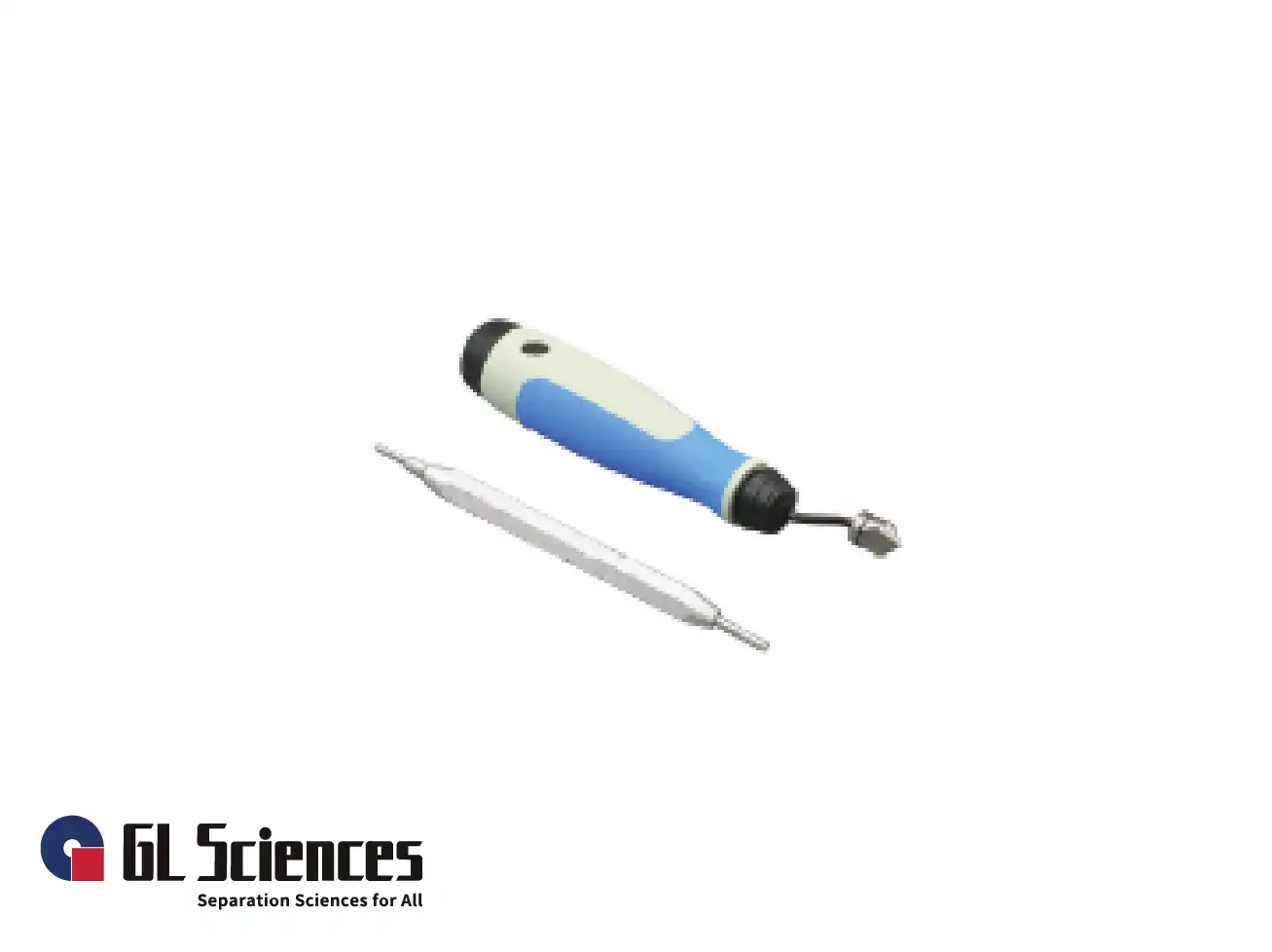

Maintenance Tools for Packing Integrity

Maintaining the ends of a packed column involves the precise manipulation of the wool plugs. GL Sciences provides "Wool Inserts" and "Wool Removers" specifically designed for these tasks. Technically, using the correct tool prevents the fragmentation of the wool, which could lead to small particles migrating into the detector or flow controllers. These tools ensure that the packing remains compressed and secure, which is essential for consistent backpressure and peak symmetry throughout the column's life.

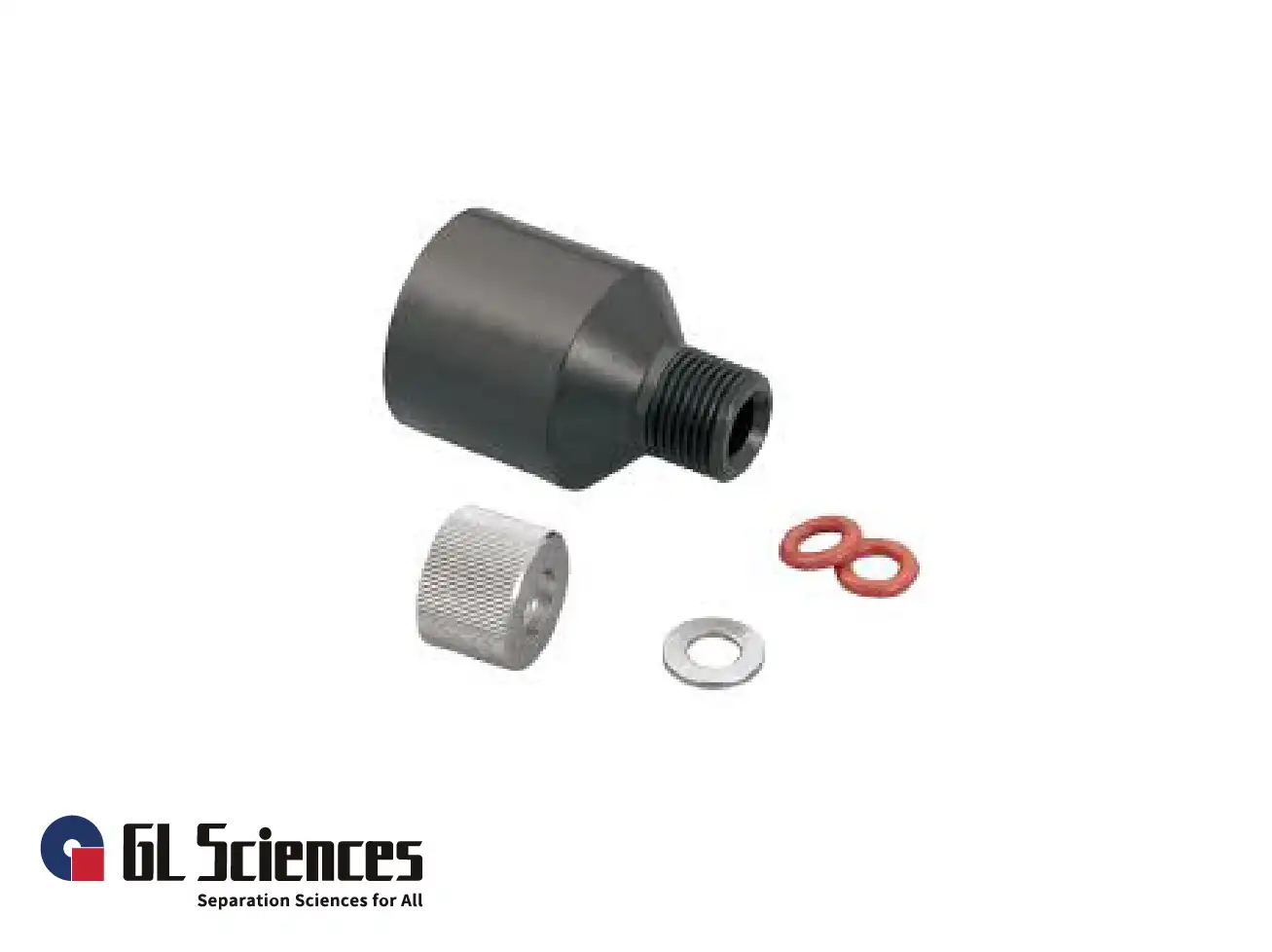

Glass Column Joint Technology and Stability

Glass columns are susceptible to mechanical stress at the connection points. GL Sciences offers technical solutions such as spring glass column joints and specialized nuts and washers for glass column installation. These components are designed to provide sufficient tension for a leak-free seal without applying excessive pressure that could lead to glass fracture. This technical balance is vital for the long-term operation of glass packed systems, especially in applications requiring high chemical inertness.

O-Ring Material Selection for Specialized Applications

Beyond standard heat-resistant silicone, GL Sciences offers Red Silicone O-rings designed for a wide thermal range (-60°C to +230°C). Technically, while these are not as mechanically strong as P-type rings, they offer specific advantages in low-temperature applications. However, analysts must be technically aware that these can decompose in the presence of high-temperature steam. Selecting the correct O-ring material based on the analytical conditions is a prerequisite for maintaining vacuum or pressure stability in the GC system.

Click here for more information about GL Sciences range of products
