High-Velocity Hydraulic Platforms
|
For Crash Simulation and Dynamic Impact Material Response

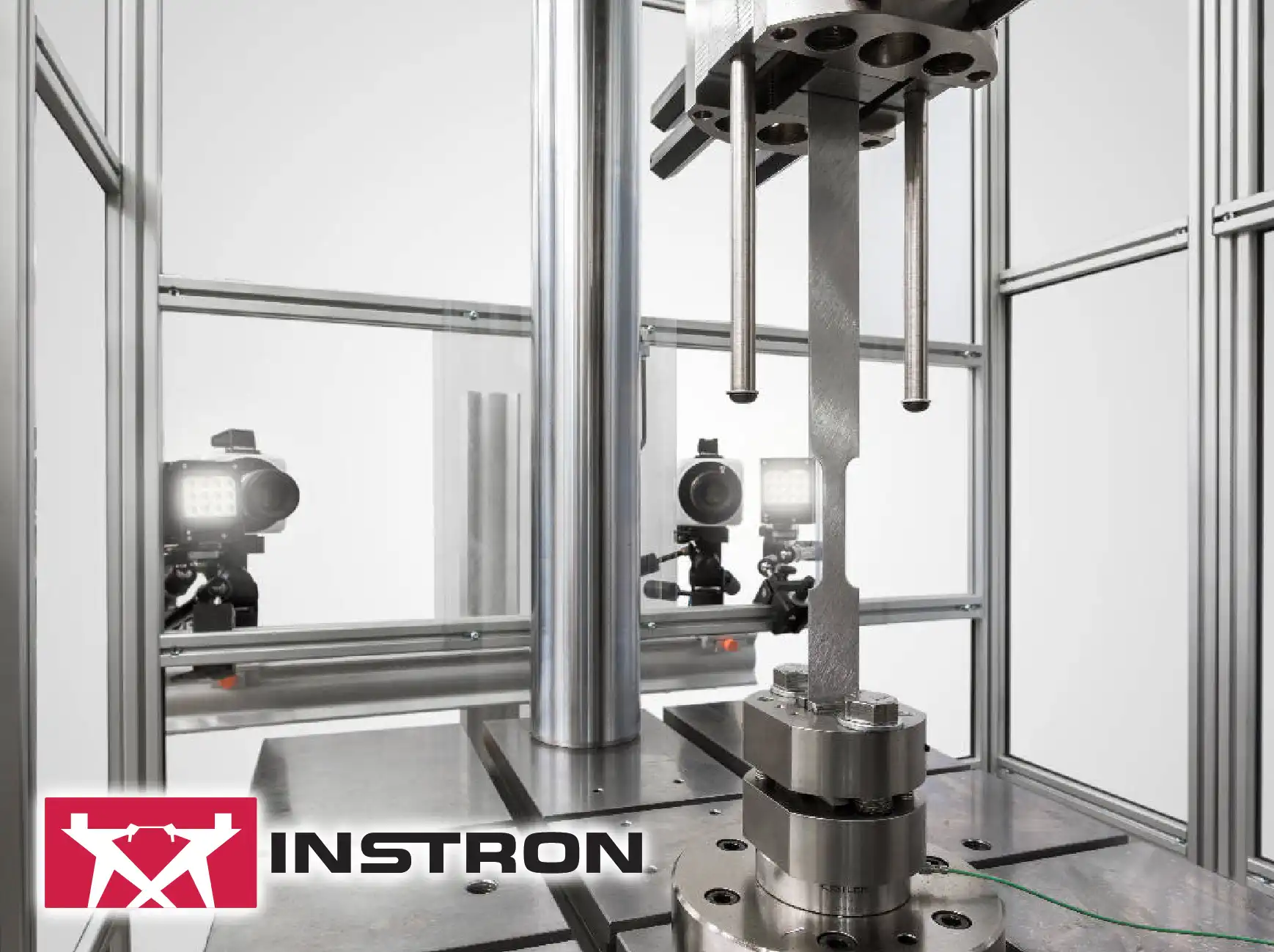

Instron High Strain Rate VHS Systems.
A fundamental technical feature is the ultra-fast hydraulic actuator coupled with a sophisticated digital control system designed to rapidly accelerate the crosshead to the target velocity and then maintain precise control through the transient impact event. Crucially, the system incorporates an ultra-high-speed data acquisition system with sampling rates in the megahertz range, ensuring the entire, fleeting dynamic event—which can last mere milliseconds—is captured with sufficient temporal resolution to accurately separate material inertia effects from true material response.
Due to the high energies involved, these systems are constructed with inherent robustness and safety protocols, featuring heavy-duty load frames and comprehensive safety enclosures to contain any resulting debris or high-energy fractures. The dedicated control software provides tools for post-impact analysis that account for inertial effects and wave propagation phenomena, allowing researchers to isolate the true, high-rate material properties required for complex computational analysis.
Conventional testing equipment fails to provide accurate material properties for crash and impact modeling because they cannot achieve the necessary high strain rates. The systems specifically overcome this limitation by generating strain rates up to 1000 per second or more, providing the essential rate-dependent material data necessary for accurate finite element analysis (FEA) crash simulations.
Capturing the entire dynamic event accurately is severely constrained by slow data acquisition speeds in standard machines, leading to undersampling and loss of critical information during the milliseconds of impact. The system's megahertz (MHz) data acquisition rate ensures the entire stress-strain history of the high-speed event is captured with high-time resolution, preserving the fidelity of the dynamic curve.
A major challenge in high-speed testing is the contamination of true material response data by inertial forces generated by the test fixtures and load train. The control software is specifically designed with features to process and filter the raw high-speed data, enabling researchers to mathematically remove inertial contributions and isolate the true material behavior.
The high-energy, catastrophic failure of specimens under dynamic impact creates a significant safety risk to laboratory personnel from flying fragments and high-pressure shockwaves. The use of heavy-duty safety enclosures and interlocking doors is non-negotiable, ensuring full containment of the high-velocity fracture energy, protecting the operator and the lab environment.
Achieving the required high velocity quickly and maintaining it throughout the test stroke is difficult with standard hydraulic controls. These systems utilize a dedicated accumulator and servo-valve arrangement optimized for peak power delivery and rapid acceleration, ensuring the machine reaches the target velocity profile before impact to guarantee a valid test.

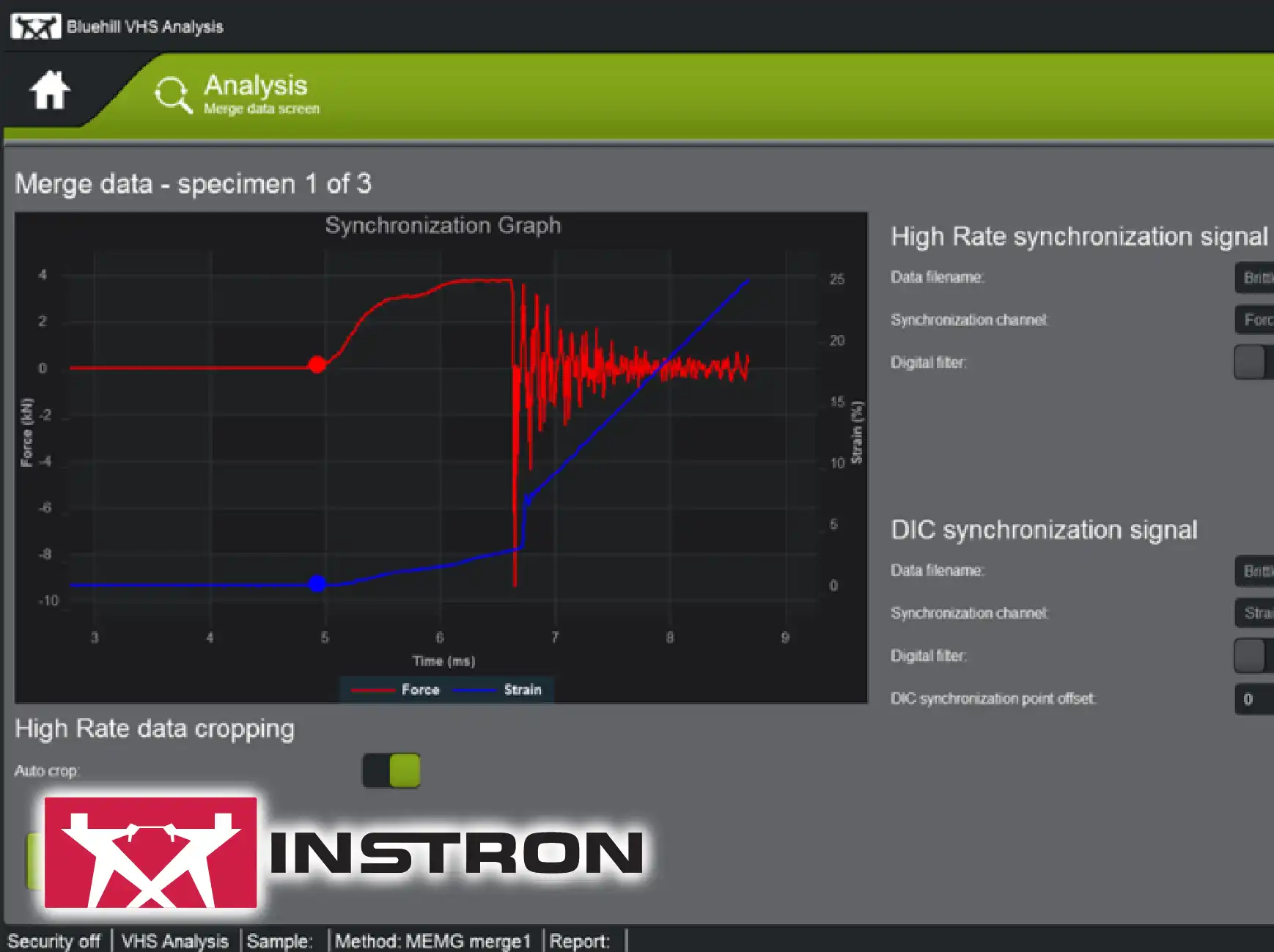

Researchers often find it difficult to integrate external high-speed cameras or specialized sensors (e.g., laser extensometers) due to synchronization issues with the test system's trigger. The control electronics provide precise, sub-microsecond synchronization for external instrumentation, ensuring all external data captures are perfectly timed with the onset of the mechanical event.
The difficulty in obtaining reliable, high-speed strain data without physical contact can compromise results due to extensometer slippage or damage. The system accommodates non-contact strain measurement techniques (e.g., digital image correlation) and provides the necessary optical access and data synchronization to ensure accurate dynamic strain readings.

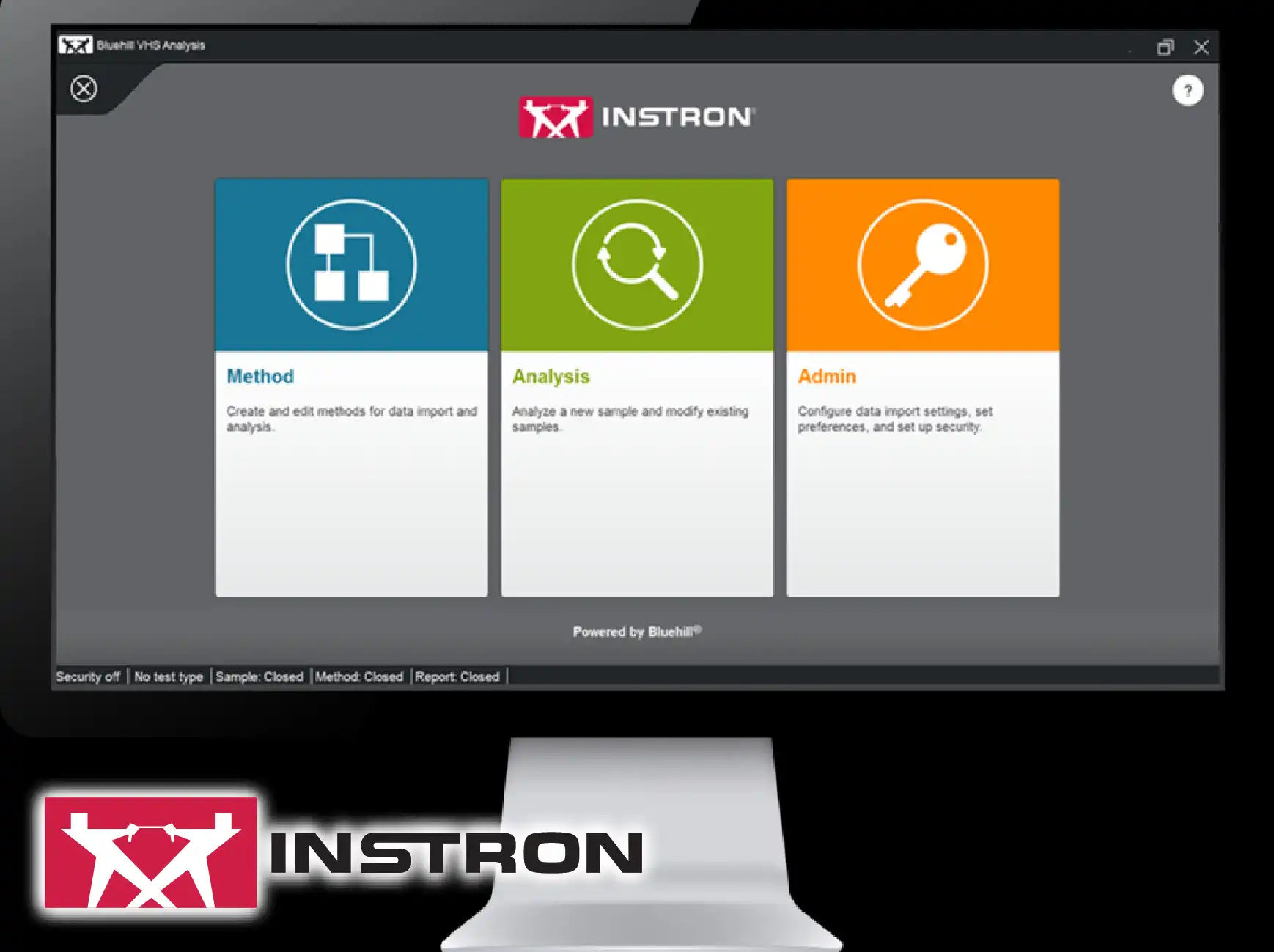

The operational complexity of high-speed systems often requires highly specialized technical staff, increasing labor costs and limiting accessibility. While complex, the system interface is designed to simplify the execution of complex velocity profiles and high-speed data processing, making these advanced tests more accessible to a broader range of research technicians.
