Integrated Thermal-Mechanical Systems
|
For High-Temperature Durability and Fatigue Testing

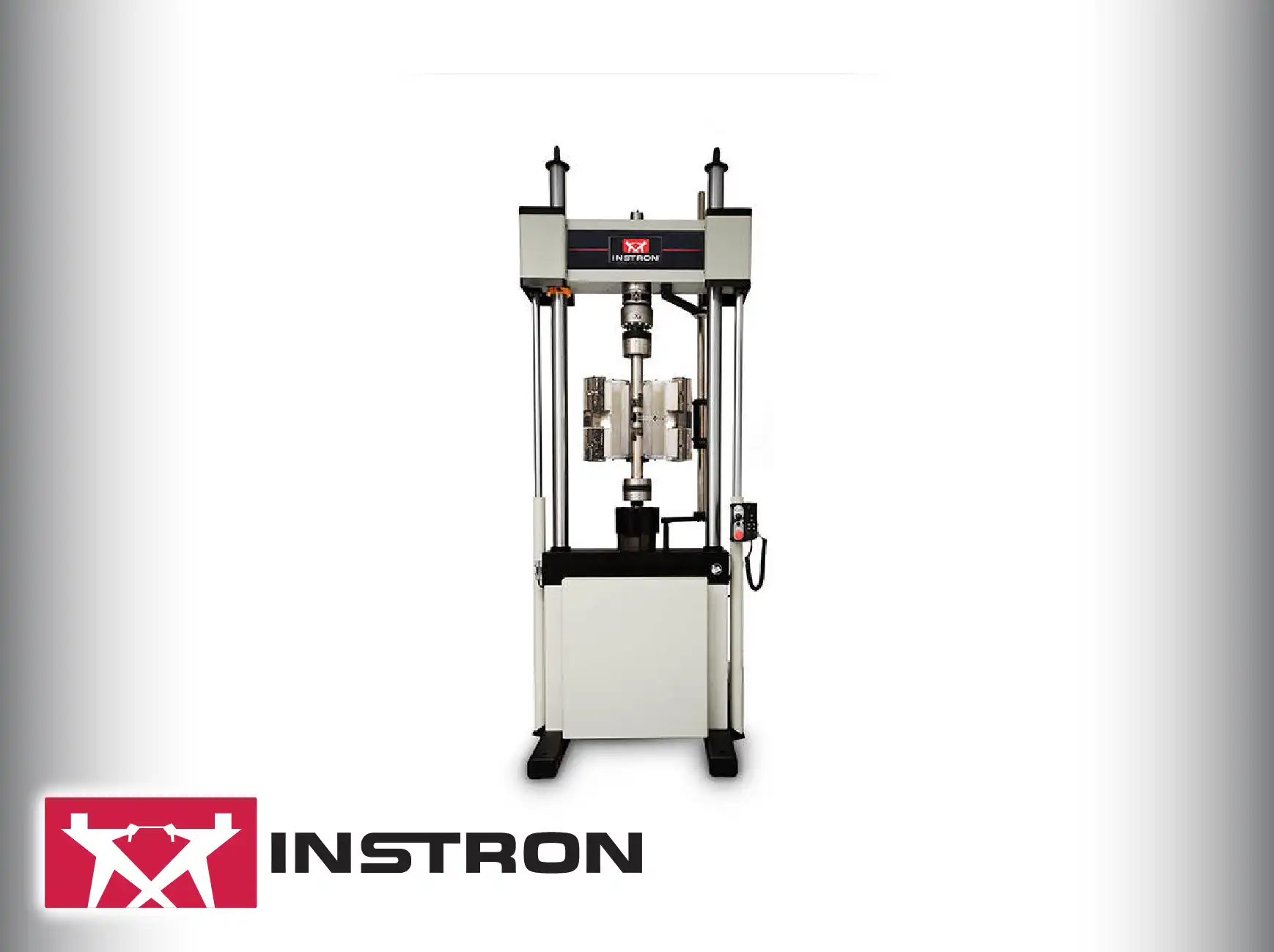

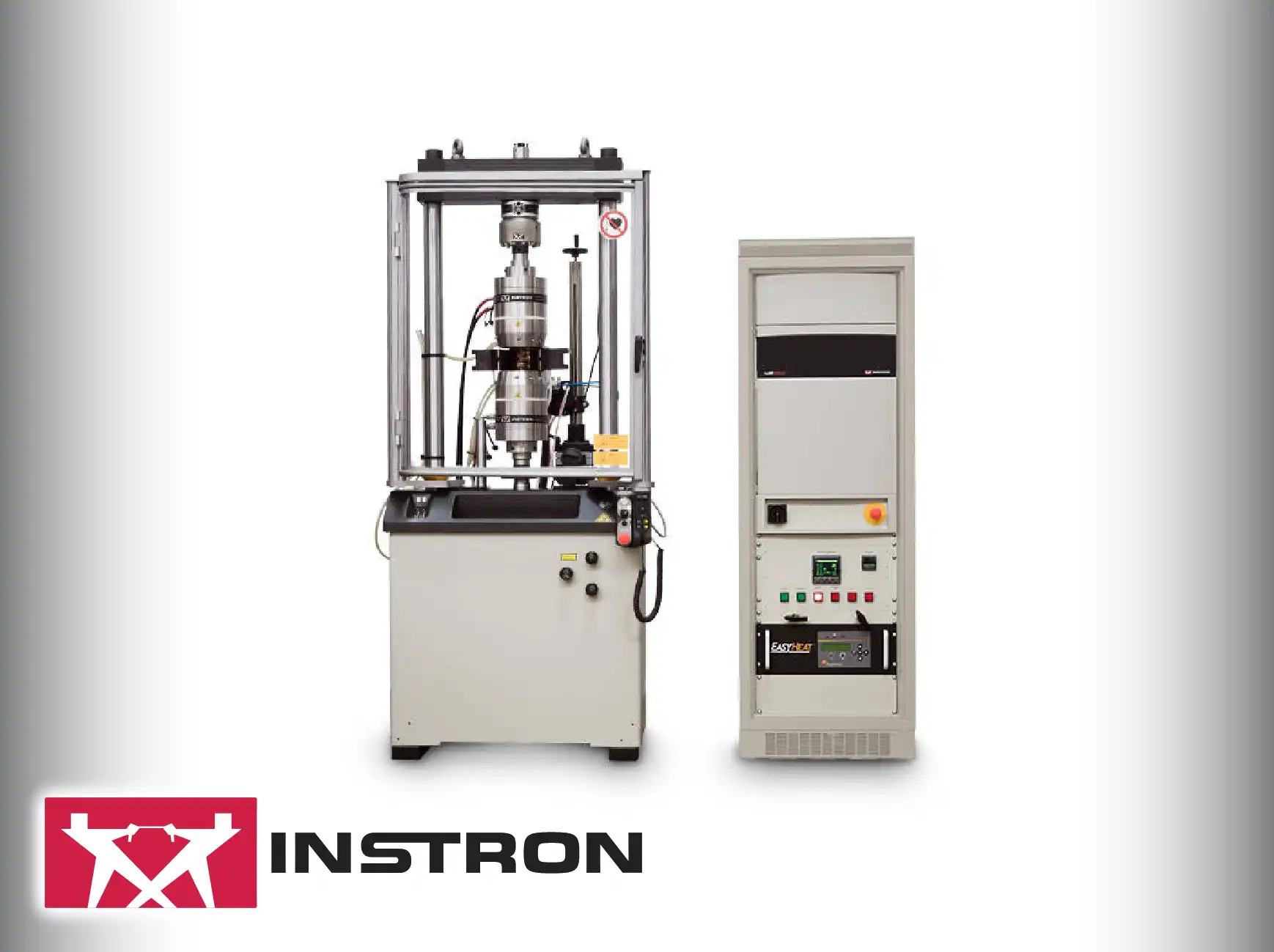

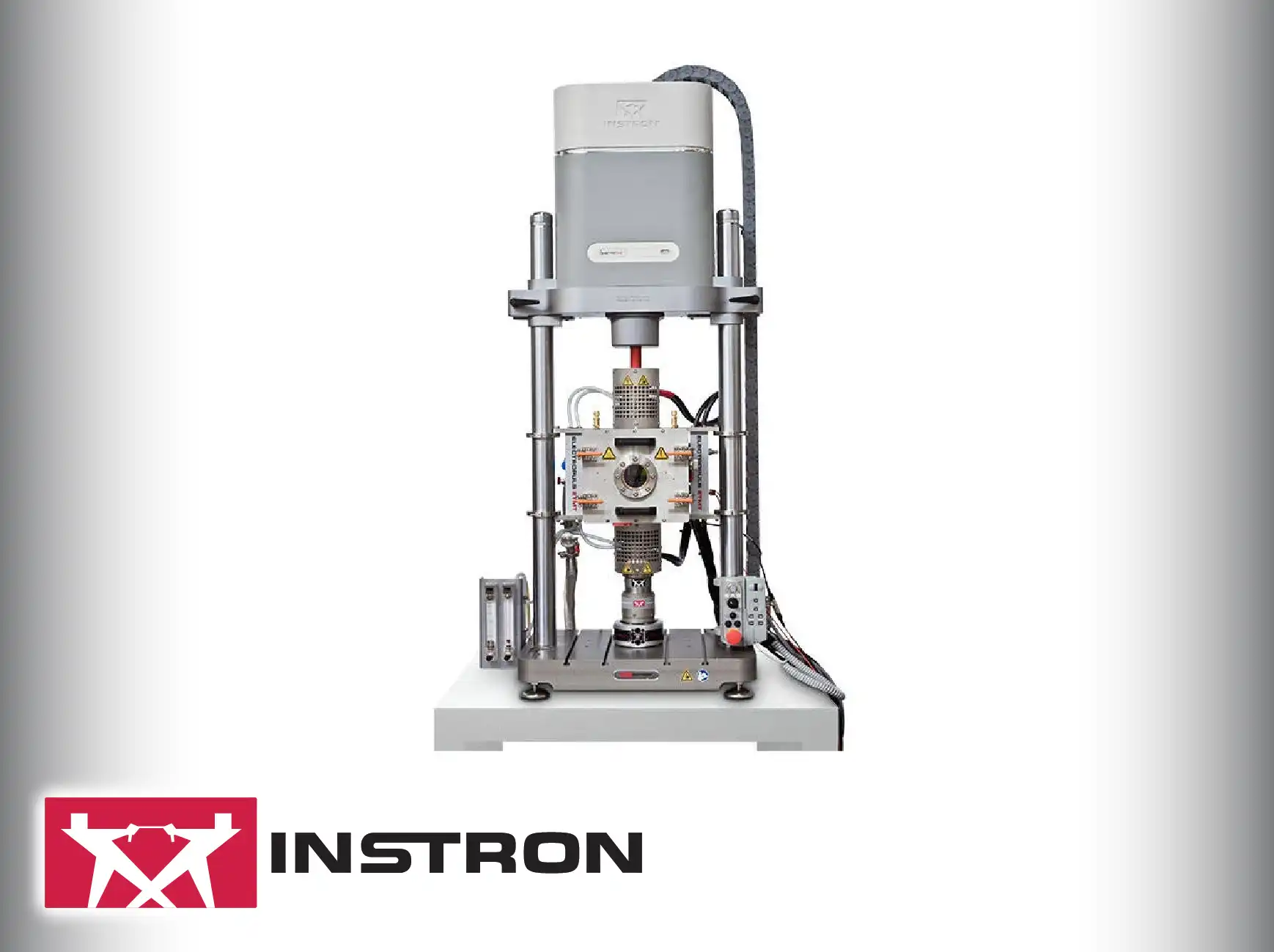

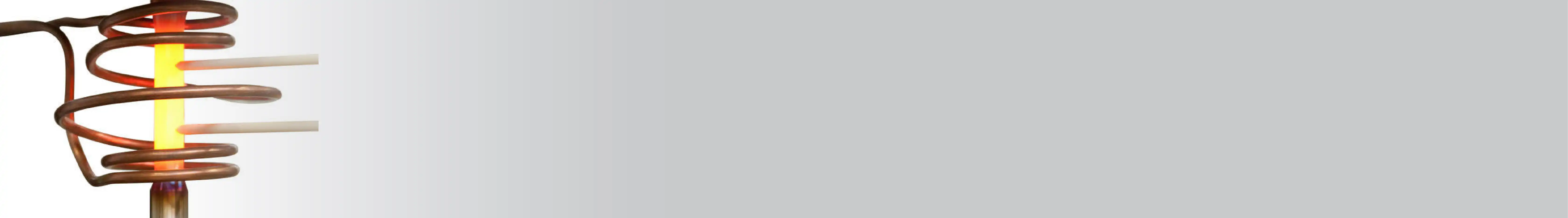

Instron High Temperature Fatigue.
The technical challenge lies in maintaining precise axial alignment and high control stability under highly dynamic thermal conditions. The system utilizes specialized water-cooled grips and fixtures and long-stroke, high-accuracy extensometry (often non-contact or water-cooled) designed to isolate the load cell and actuator from the intense heat, ensuring that the critical force and strain measurements maintain calibration and high resolution despite the extreme temperature gradient.
The control software provides advanced capabilities for thermal-mechanical synchronization, allowing the engineer to program complex cycles where mechanical strain is precisely phased with temperature variation, accurately simulating component duty cycles in extreme environments. Furthermore, the robust frame structure is engineered to prevent the thermal expansion of the test apparatus from contaminating the measured displacement, ensuring the true strain applied to the specimen remains accurate.
Testing high-performance materials is compromised when the test temperature drifts or lacks uniformity across the specimen gauge length. The system utilizes multi-zone furnace control and high-precision thermocouples to maintain tight thermal uniformity (1C or better) along the specimen, guaranteeing a consistent thermal-mechanical state during the test.
The need to perform high-frequency fatigue tests at elevated temperatures is often limited by the slow thermal response and high inertia of conventional furnaces. Specialized high-temperature systems may utilize induction heating or rapid radiant heating to achieve the required fast thermal ramp rates, allowing for accurate simulation of thermal cycles during testing.
The difficulty in obtaining reliable strain data at high temperatures due to the failure or slippage of traditional contact extensometers is a persistent problem. The integrated solutions are designed for non-contact high-temperature extensometry or specialized water-cooled contact devices, ensuring accurate, high-resolution strain readings throughout the elevated temperature test.
The thermal gradient along the load train from the hot specimen to the cold load cell and grips can introduce significant errors and wear. The system mitigates this using active water cooling circuits and insulating ceramic components within the fixtures, protecting the load cell and maintaining the structural integrity of the grips over long high-temperature durations.
When testing materials that undergo time-dependent deformation (creep) at high temperatures, the control system must seamlessly transition between strain control (for fatigue) and force control (for creep). The advanced digital controller facilitates seamless, real-time control mode switching during complex creep-fatigue or dwell cycles.
The high-energy break of a specimen at extreme temperatures poses a significant hazard and risk to the test setup. The robust, enclosed design of the furnace and frame components is engineered to safely contain both the thermal energy and any resulting debris from high-temperature material failure.
Integrating a large, heavy furnace with a dynamic frame often leads to misalignment of the axial load path, resulting in inaccurate data due to bending moments. The frame's robust design and precise mounting interfaces ensure that the combined furnace/fixture assembly maintains strict axial alignment, even at high temperatures where component dimensional stability is challenged.
The lack of validated methods for high-temperature testing of specific novel alloys or ceramics creates uncertainty in the research data. These specialized systems often come with pre-validated standard protocols (e.g., for ASTM E606 or ISO 12106) for non-ambient testing, providing a reliable starting point for method development.
