For Combined Axial and Torsional Fatigue Analysis
.webp)

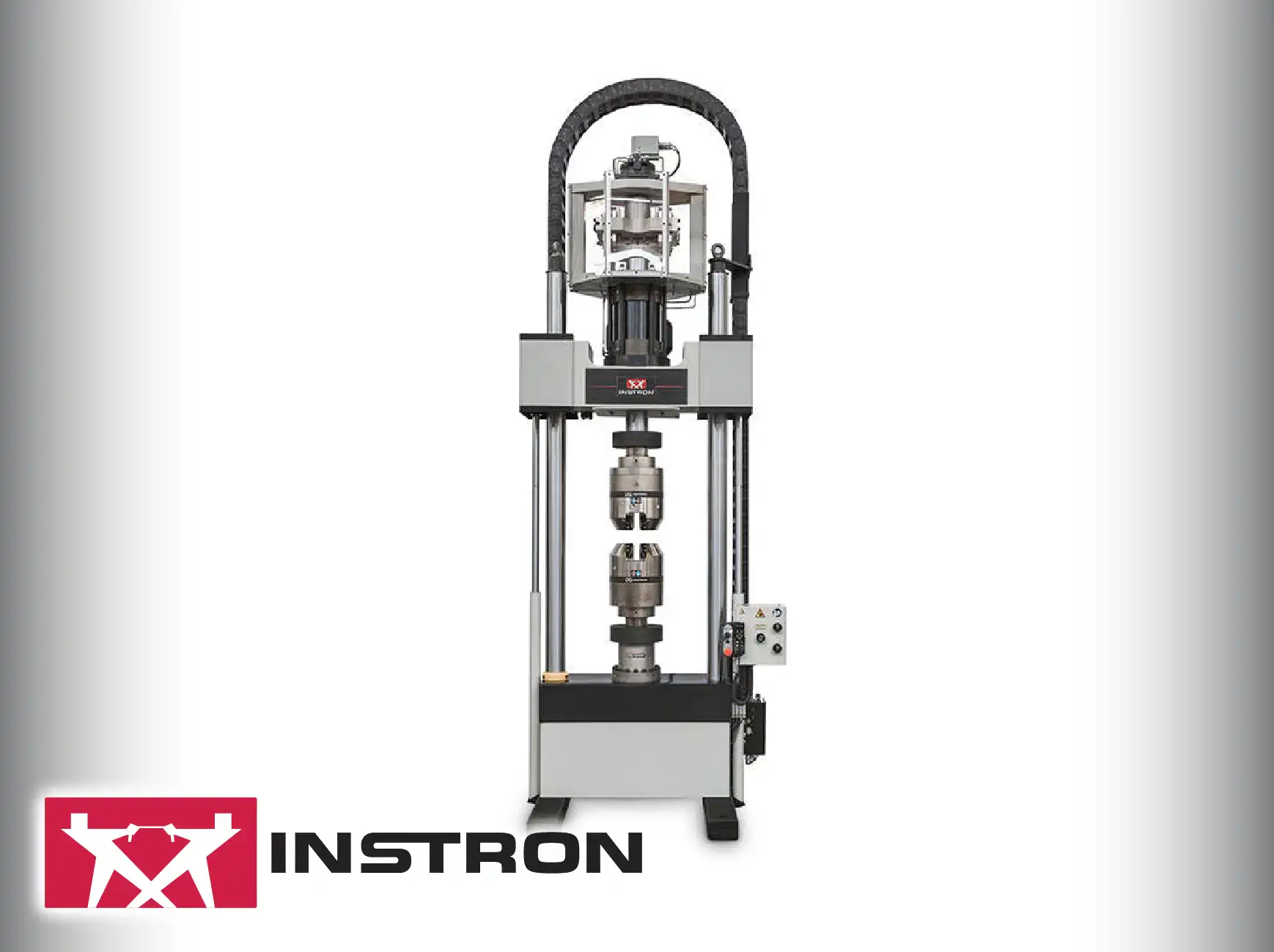

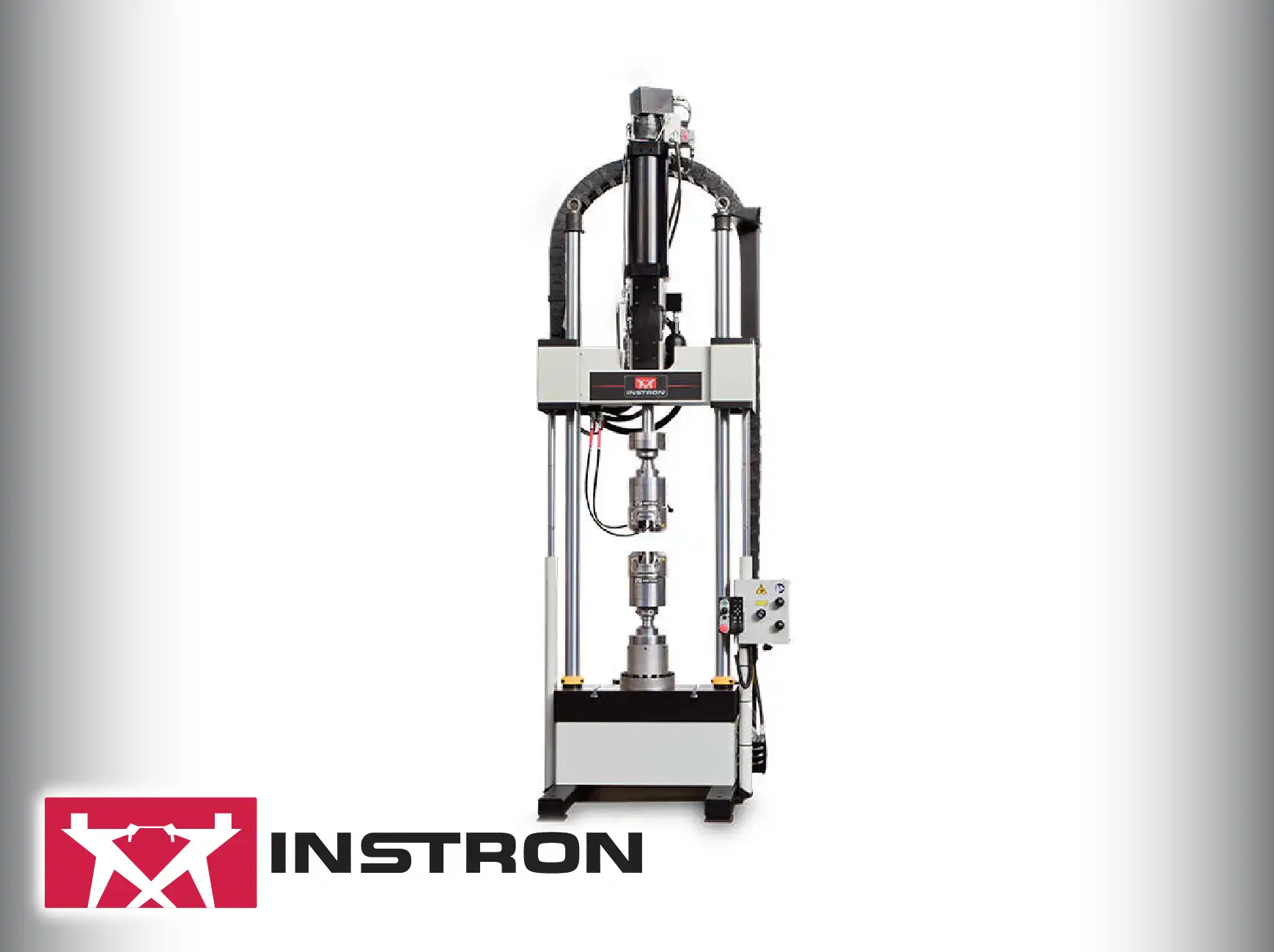

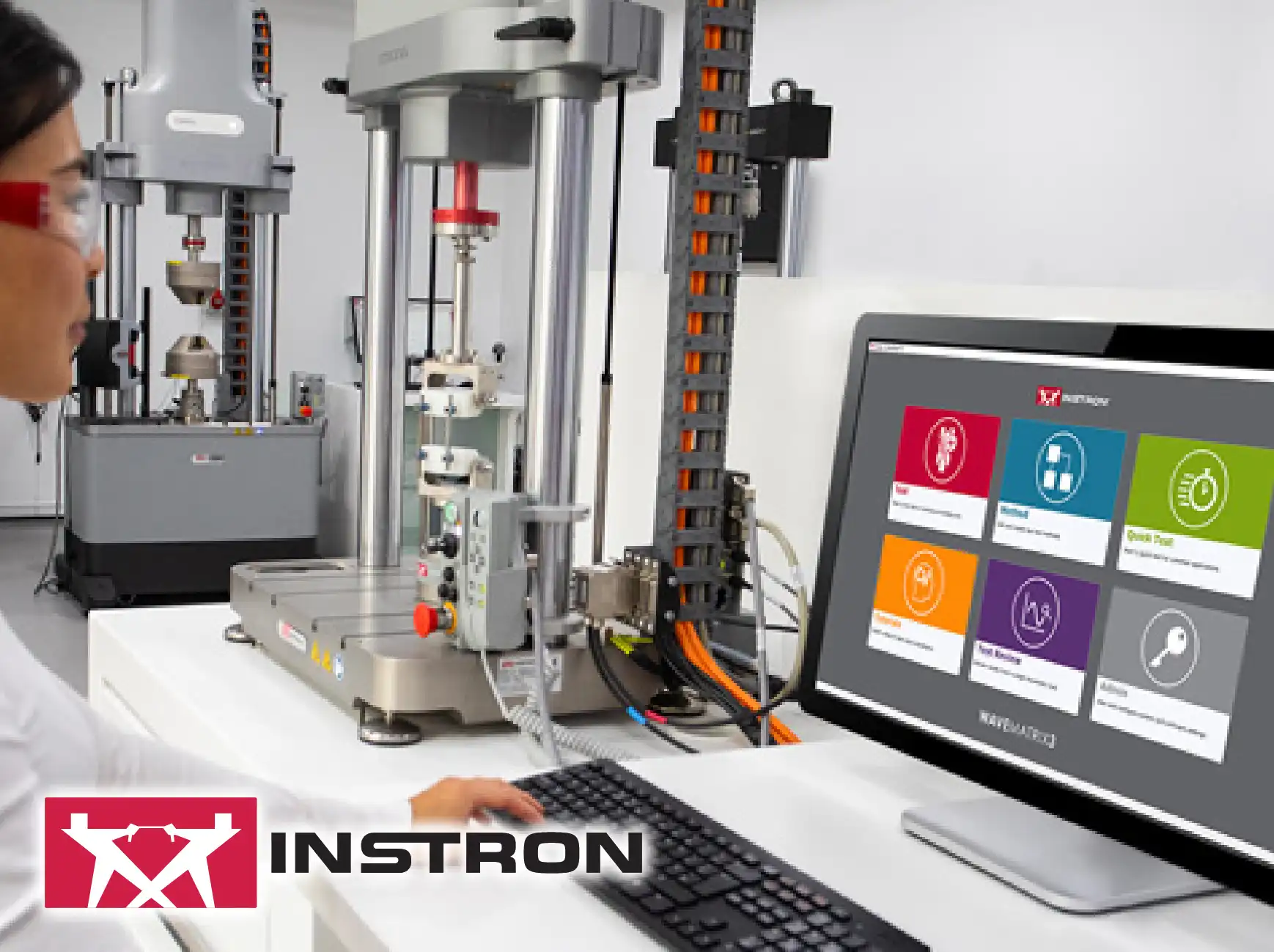

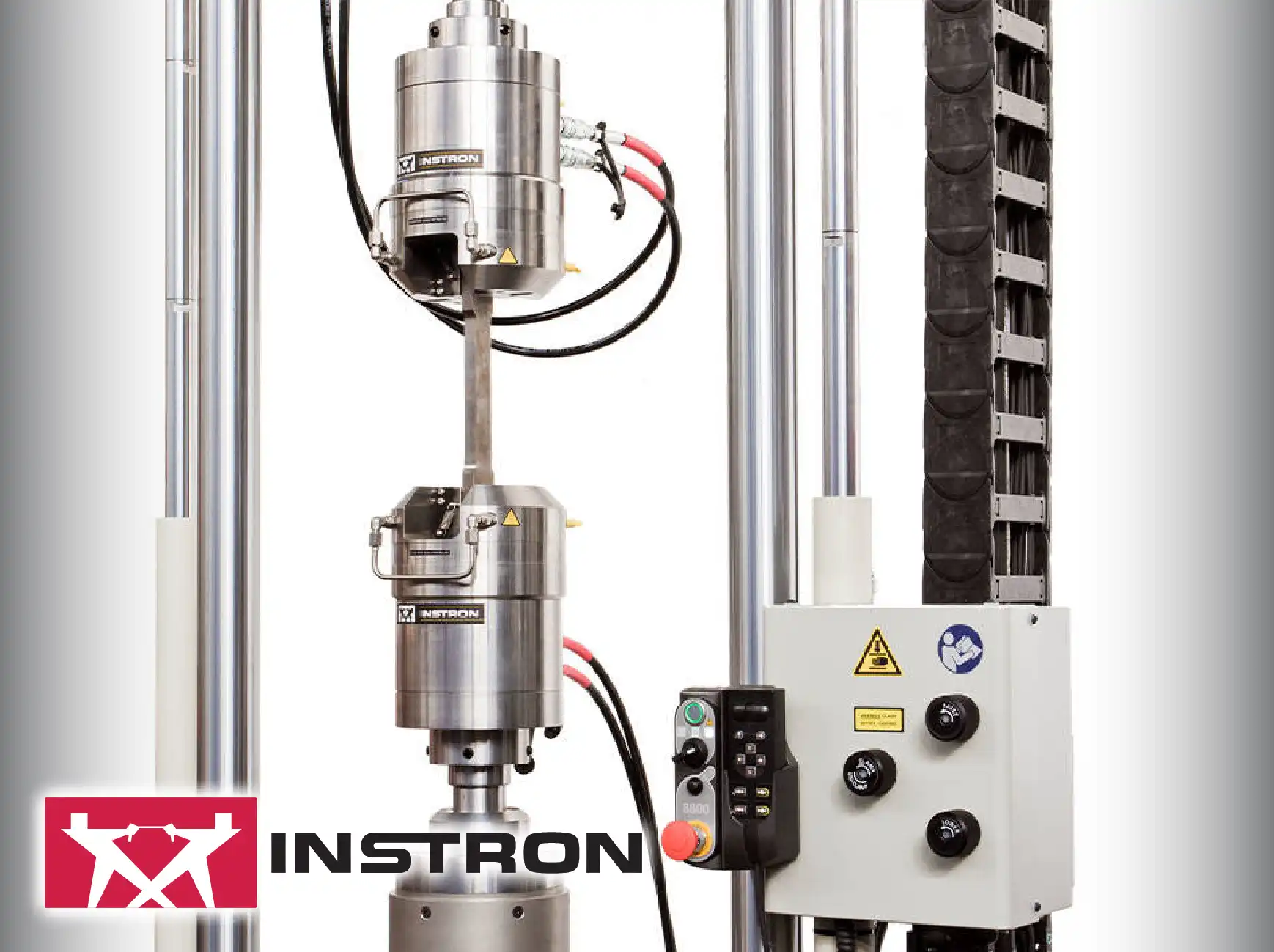

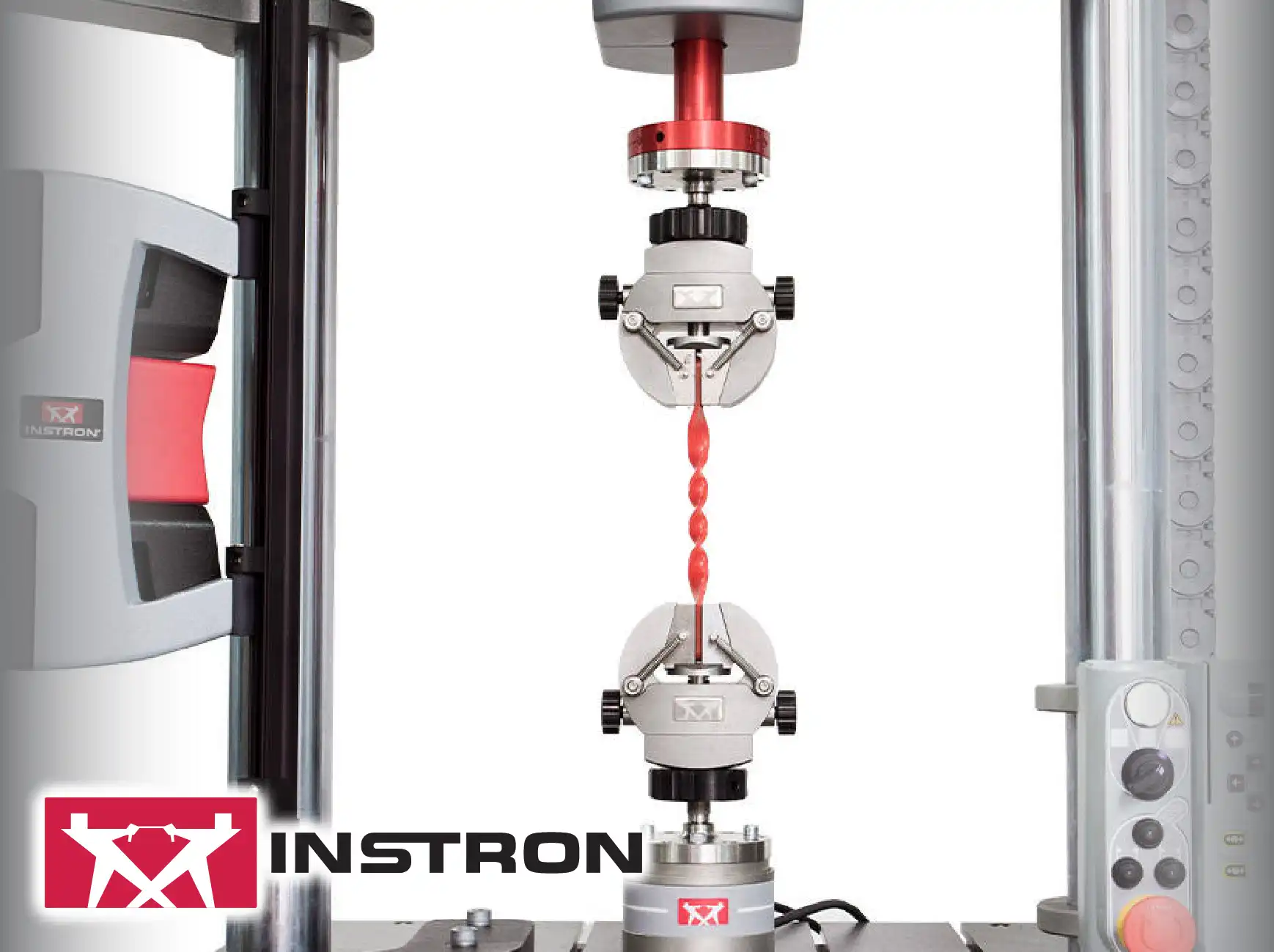

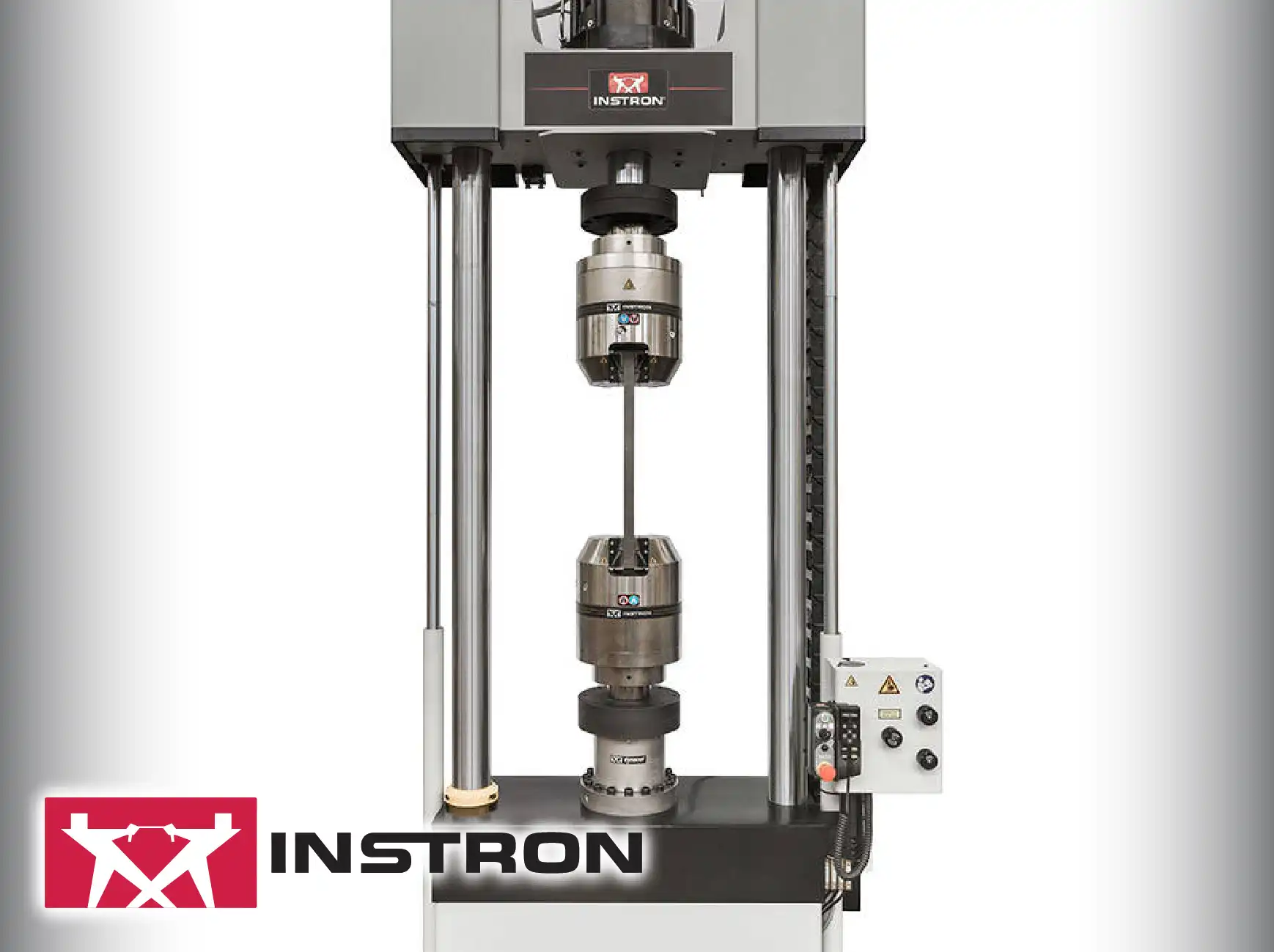

Instron Axial-Torsion Systems
The core technical challenge addressed is the precise, decoupled control of both axes. The system achieves this using a unique actuator arrangement and a specialized controller that manages the independent servo-valve circuits for axial and torsional actuators, ensuring minimal mechanical crosstalk between the two loading modes.
The load frame itself is built with exceptional torsional stiffness to prevent energy loss and structural compliance from contaminating the torque measurement during high-frequency cyclic tests. The generous test space accommodates a wide range of accessories, including environmental chambers and specialized component fixtures, ensuring that complex multiaxial loading can be performed under relevant thermal conditions, vital for accurate simulation of in-service environments.
Standard uniaxial testing equipment fails to provide accurate fatigue life predictions for components that operate under simultaneous bending, twisting, and pulling forces. These systems solve this by simulating the combined multiaxial stress path precisely, providing the necessary data to apply failure theories (e.g., critical plane) correctly.
Crosstalk and mechanical interference between the axial and torsional channels are common problems in poorly designed multiaxial systems, leading to errors in control and inaccurate results. The specialized actuator mounting and high-performance control algorithms in this system ensure minimal coupling between the two axes, maintaining the independence of force and torque control.
Precise measurement of angular displacement over millions of cycles, especially at zero crossing, is highly prone to errors due to bearing friction in conventional rotational sensors. The use of non-contact angular measurement transducers eliminates friction and wear, ensuring high-resolution, stable measurement of rotational deformation over extended fatigue testing periods.
The physical installation and alignment of large, complex component fixtures for multiaxial testing are often hindered by the constrained test space of standard machines, risking bending moments. The frame offers sufficient space and robust fixture mounting plates to facilitate the precise, low-bending alignment of multiaxial grips and components.
Simulating realistic service loading histories often requires complex, user-defined loading paths that transition between force, torque, and phase angles, which generic software cannot manage. The advanced control software provides a customizable waveform editor and specialized multiaxial control modes, enabling the precise programming of complex, phase-controlled loading paths.
When testing materials sensitive to mean stress or mean torque, maintaining a stable offset over long duration fatigue tests is crucial but challenging due to temperature and pressure drift. The system's advanced hydraulic and electronic controls ensure superior long-term stability of both the axial and torsional mean values.
Obtaining valid data for materials that exhibit highly coupled anisotropic behavior (e.g., composites or textured metals) requires high-resolution measurement of both axial and torsional strain. The system is designed to seamlessly integrate with multiaxial extensometers, ensuring accurate strain measurement in both linear and shear directions.
The high initial capital cost of multiaxial systems can be prohibitive for some labs, often forcing them to compromise with lower-capability equipment that produces questionable data. The robust, modular design allows the system to serve as a versatile platform, capable of performing standard uniaxial fatigue tests with high fidelity when multiaxial capability is not required, maximizing the return on investment.
