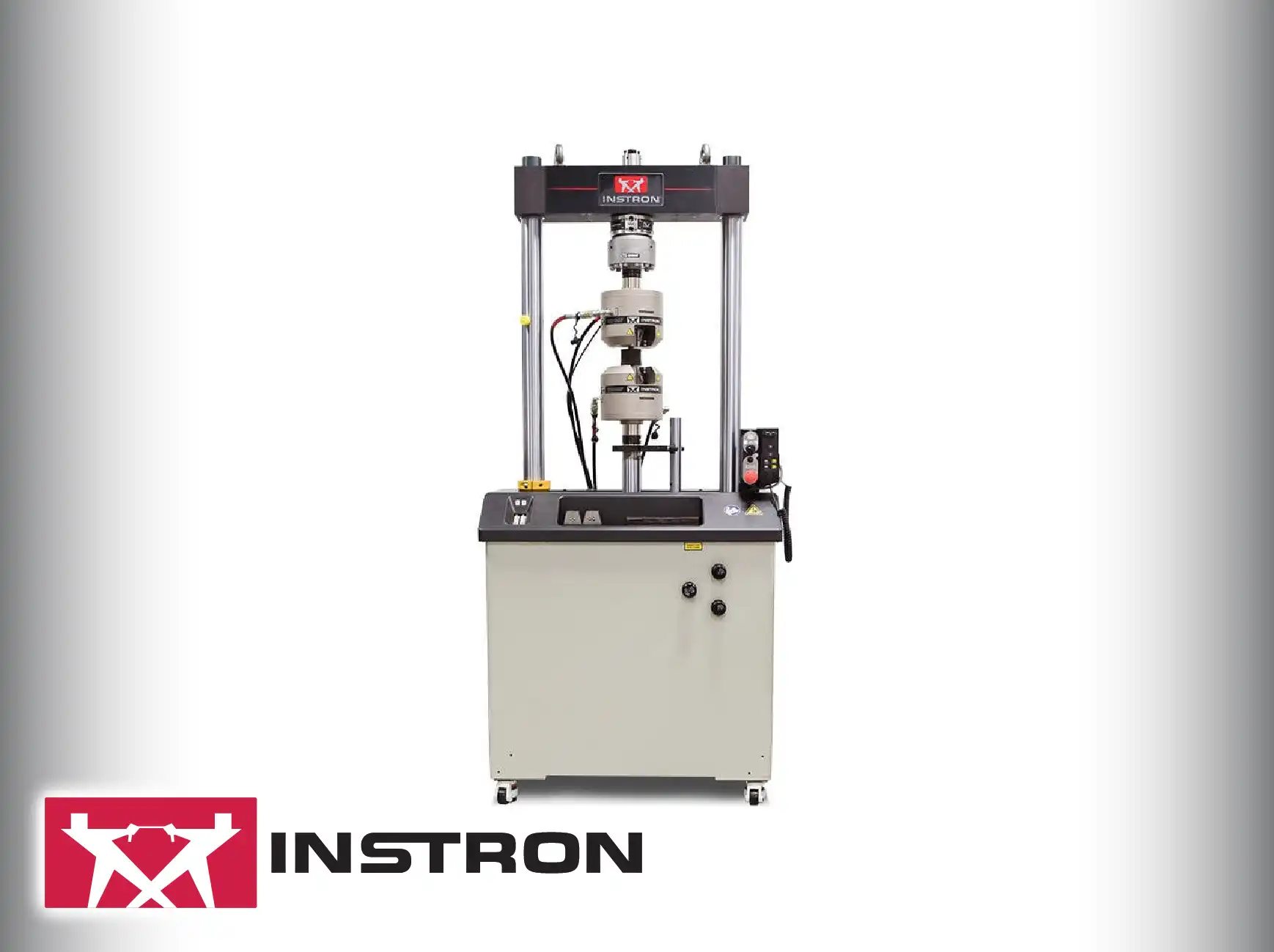

Instron General Purpose Hydraulic Fatigue.
The General Purpose Hydraulic Fatigue Systems are built as robust, floor-standing platforms designed to handle rigorous, high-force, and high-cycle durability testing demanded by industrial and aerospace applications, delivering forces ranging from 10 kN up to 500 kN or more. These systems are centered around hydrostatic bearing actuators and highly responsive digital servo-valves that ensure exceptional lateral stiffness, near-zero friction, and instantaneous force control, making them indispensable for accurately simulating real-world loading over millions of fatigue cycles on high-strength metals and composites.

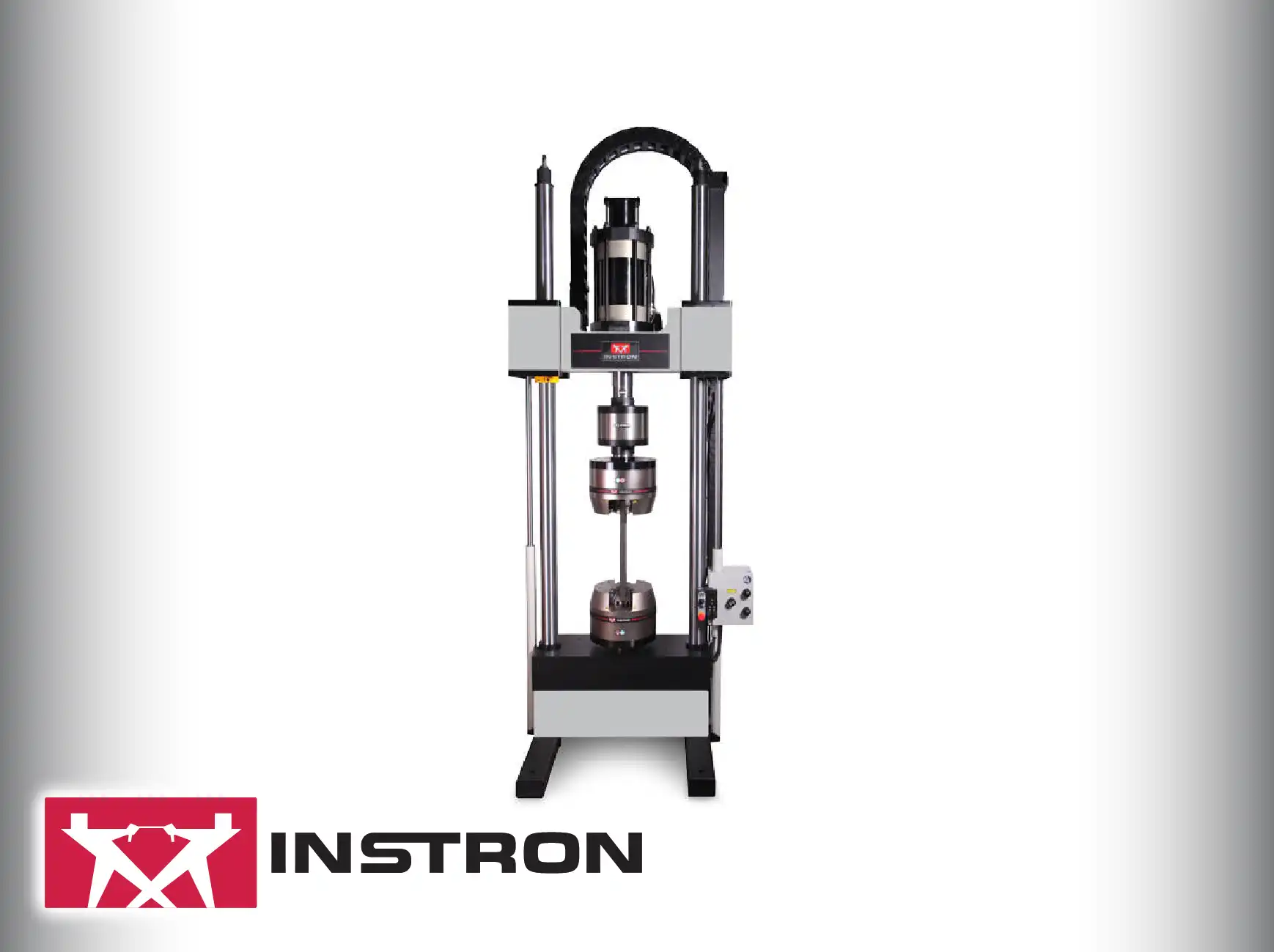

The actuator design, featuring hydrostatic bearings, is crucial because it virtually eliminates friction between the piston and the cylinder wall, which is essential for ensuring precise control at low loads and maintaining system performance over extremely long-duration fatigue tests without degradation from wear. This low-friction, high-stiffness foundation, coupled with the fast response of the servo-valve, allows the system to achieve superior waveform accuracy for complex loading patterns at high frequencies, validating material models and predicting component service life with confidence.

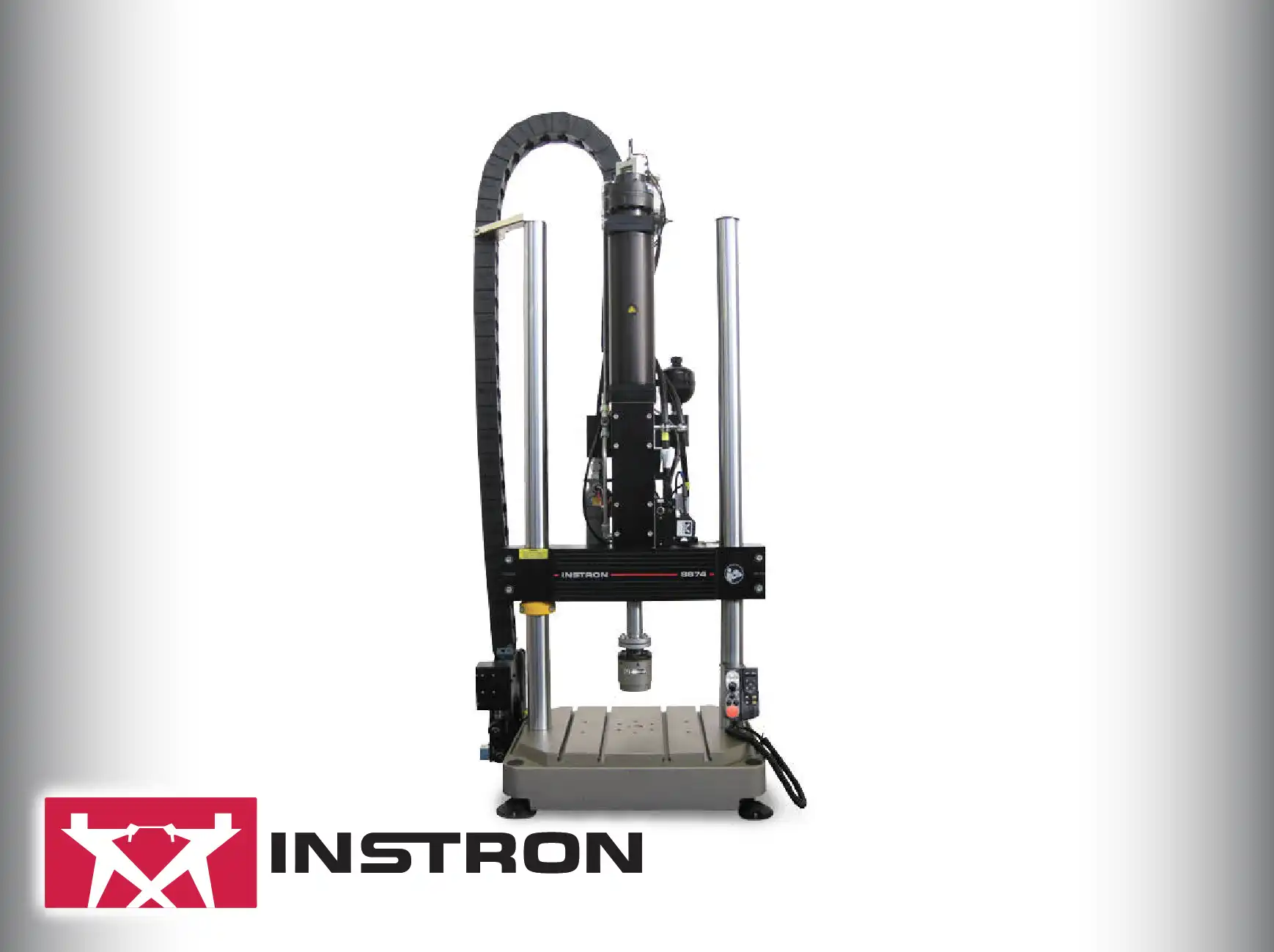

The modular structure of the loading frame provides maximum test space flexibility, enabling the rapid integration of specialized environmental chambers, furnaces, or customized component fixtures. This versatility, combined with the power of the hydraulic actuator, allows a single platform to efficiently transition between high-cycle fatigue testing of small specimens and the rigorous static or dynamic evaluation of full-scale structural components, optimizing laboratory utilization and adaptability.
Industrial labs performing continuous, long-duration fatigue testing are frequently plagued by actuator wear and mechanical degradation due to friction, leading to premature replacement and costly downtime. The hydrostatic bearing technology eliminates metal-to-metal contact, ensuring virtually unlimited bearing life and consistent, repeatable performance over billions of cycles.
Inaccurate force control, especially at the transition points of complex dynamic waveforms (e.g., creep-fatigue cycles), often invalidates test results and delays material validation. The combination of a high-response servo-valve and a stiff hydraulic drive system provides the necessary dynamic bandwidth to achieve superior fidelity in reproducing rapid or multi-stage loading profiles.
The difficulty in testing both small specimens and large, full-scale components efficiently within a single machine footprint often forces labs to invest in multiple specialized frames. The modular design and substantial vertical test space of these fatigue systems facilitate the quick reconfiguration of the load frame, accommodating a wide range of specimen sizes and test types from material coupons to assembled components.

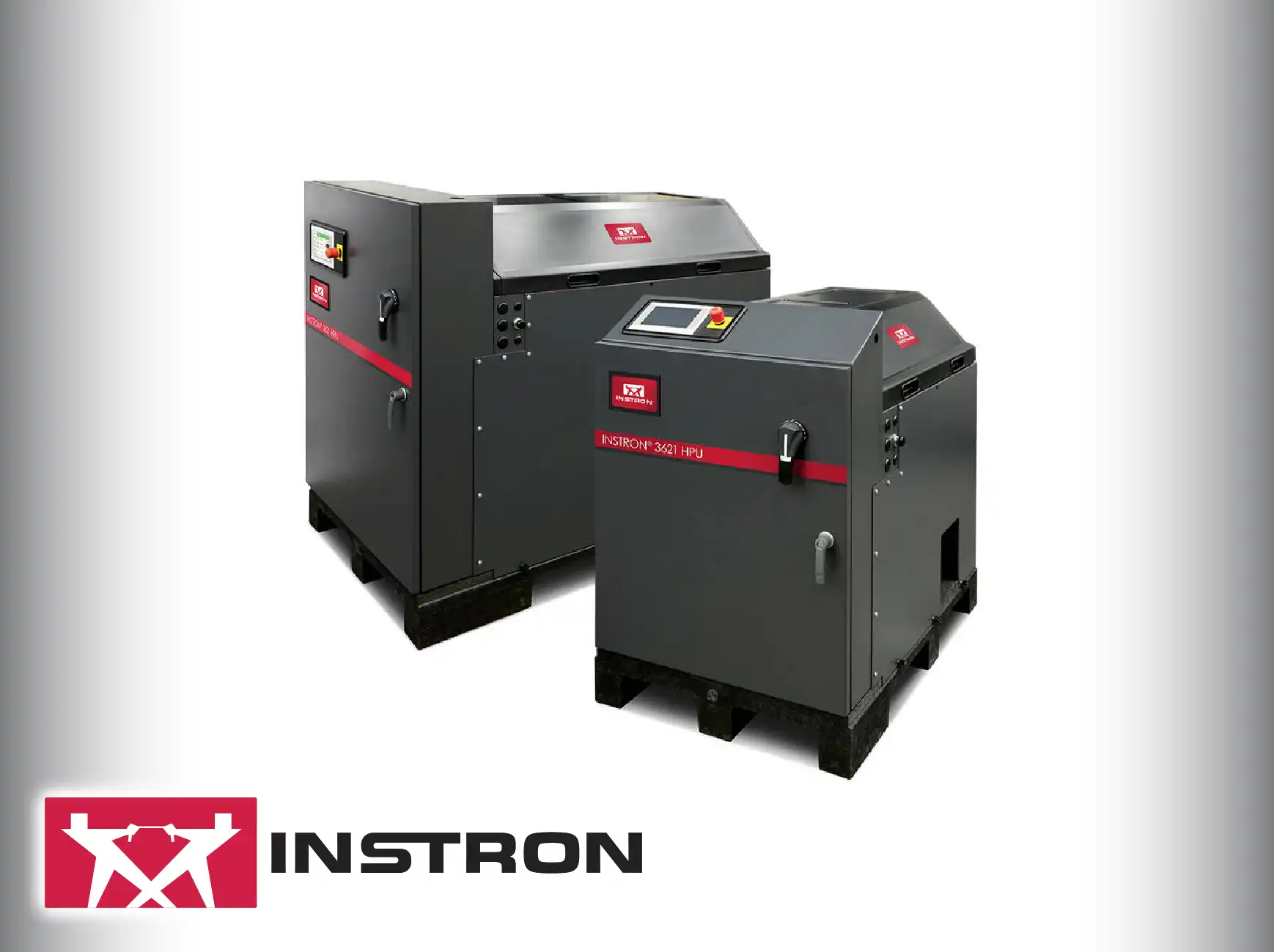

Maintaining the necessary fluid cleanliness and minimizing thermal drift in hydraulic systems is a constant operational challenge that impacts long-term accuracy and maintenance costs. These systems are engineered with advanced filtration and efficient heat exchangers in the Hydraulic Power Unit (HPU) to maintain optimal fluid conditions, ensuring stability and extending the life of the servo-valve.
Researchers requiring non-ambient testing (high or low temperature) find it challenging to integrate environmental chambers without compromising the alignment and performance of the loading system. The frame's robust design and ample test space are specifically engineered to maintain strict axial alignment even with the integration of large, heavy environmental accessories, ensuring thermal cycling does not introduce unwanted bending moments.
The high-energy failure of structural materials under fatigue can pose a significant safety hazard and damage sensitive instrumentation. The substantial physical structure of the hydraulic frame and the robust actuator mounting are designed to safely contain and absorb the high-energy shock associated with component fracture, protecting both the operator and the load cell.
Using high-force testing equipment for low-force fatigue testing often results in poor resolution and high force noise due to the machine's inherent limitations. The exceptional low-friction characteristics of the hydrostatic actuator allow the system to maintain high resolution and excellent control stability even when performing tests at fractions of the machine's maximum rated capacity.

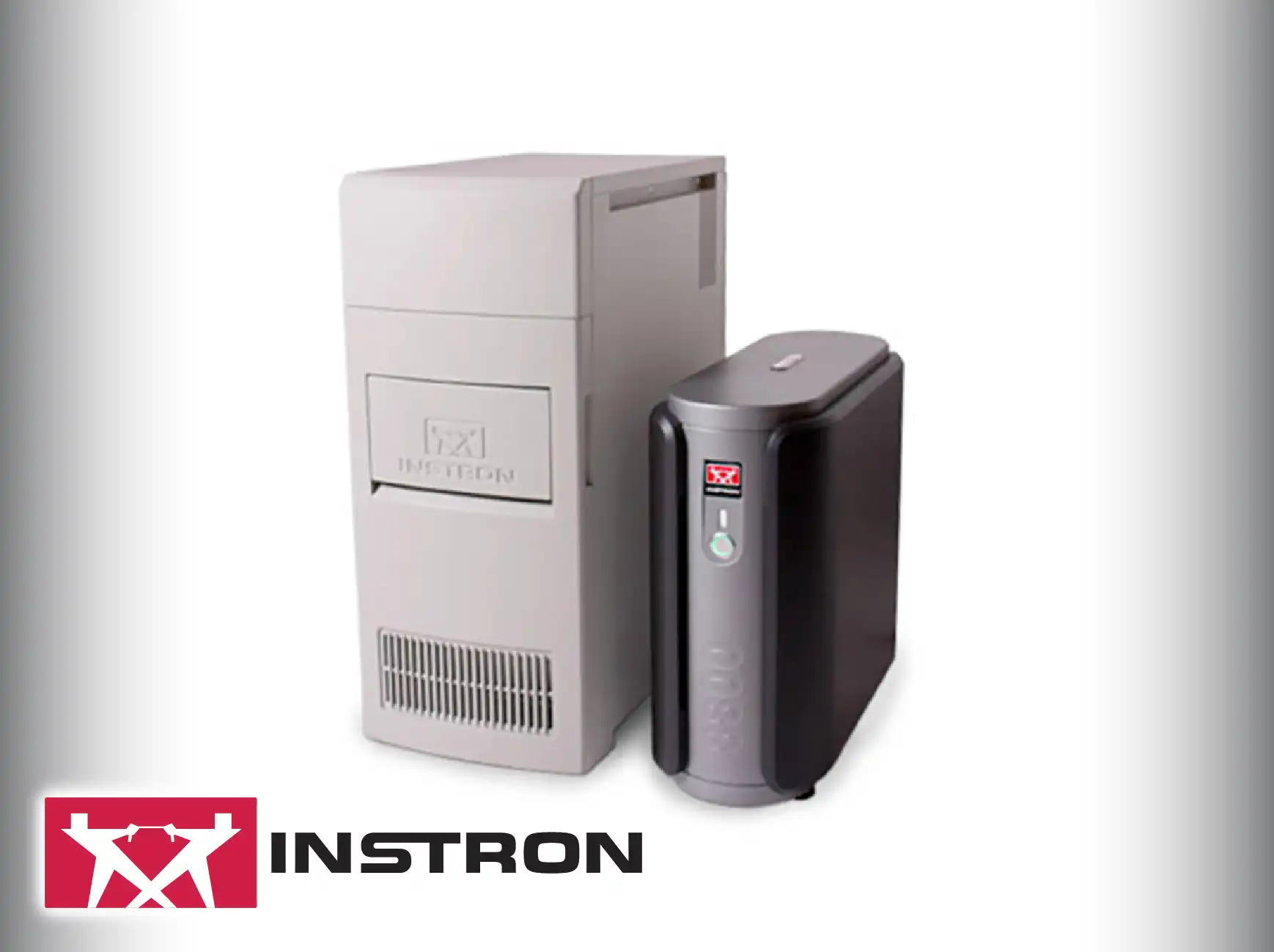

The need to upgrade the controller electronics as technology advances can be highly disruptive, requiring replacement of the entire system. These hydraulic frames are designed with a focus on controller compatibility and modularity, allowing for seamless, cost-effective electronics upgrades to the latest digital control systems without needing to replace the durable mechanical infrastructure.
