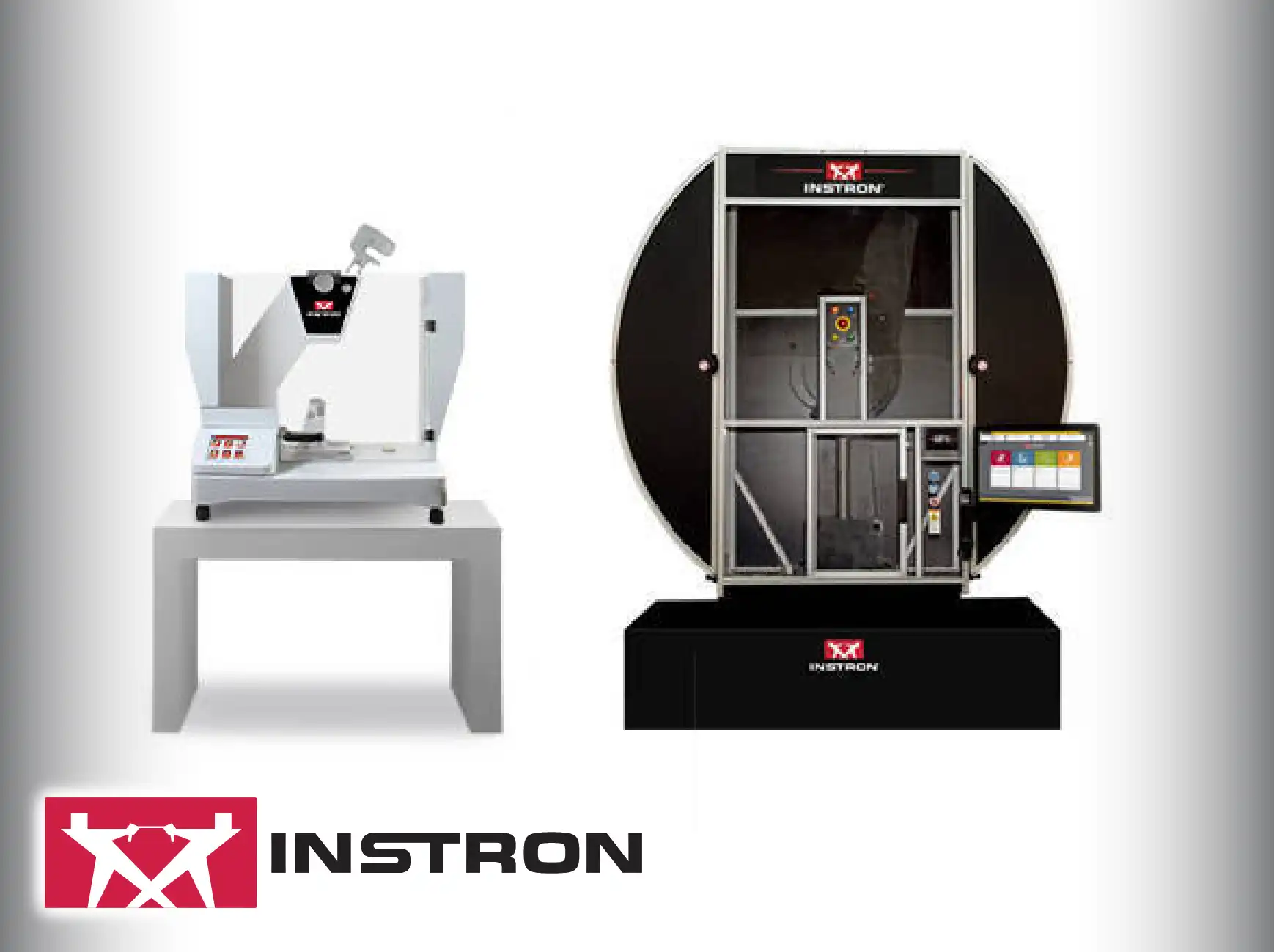

Instron Impact Drop Towers & Pendulums
These instruments are fundamental to mitigating the risks associated with structural integrity and material brittle behavior. Accurate assessment of dynamic impact prevents catastrophic, unexpected product failure, providing design engineers with the necessary confidence to select and validate materials for critical applications, ensuring compliance with global safety regulations. The ability to precisely measure the energy required to initiate and propagate a fracture provides insight into the material's fundamental resistance properties, directly informing decisions regarding material selection, thickness, and component geometry for enhanced resilience.
The detailed, time-resolved data acquired during dynamic testing is invaluable for materials science research and quality control. By generating a complete load-deflection curve, engineers can clearly distinguish between different failure modes—such as ductile yielding versus brittle fracture—and identify the precise points of crack initiation.
Modern impact testing platforms are designed with ultra-high-speed data acquisition systems that accurately measure the entire transient load-deflection curve, which resolves the difficulty of capturing events lasting only milliseconds. This technical capacity shifts failure analysis from basic pass/fail reporting to comprehensive quantitative failure mode characterization, eliminating ambiguity in material comparisons.
The system software incorporates intuitive, standard-guided testing workflows that significantly reduce the complexity of configuring test parameters, thereby minimizing the probability of operator-induced procedural errors and maximizing the consistency of test results across different laboratory personnel.

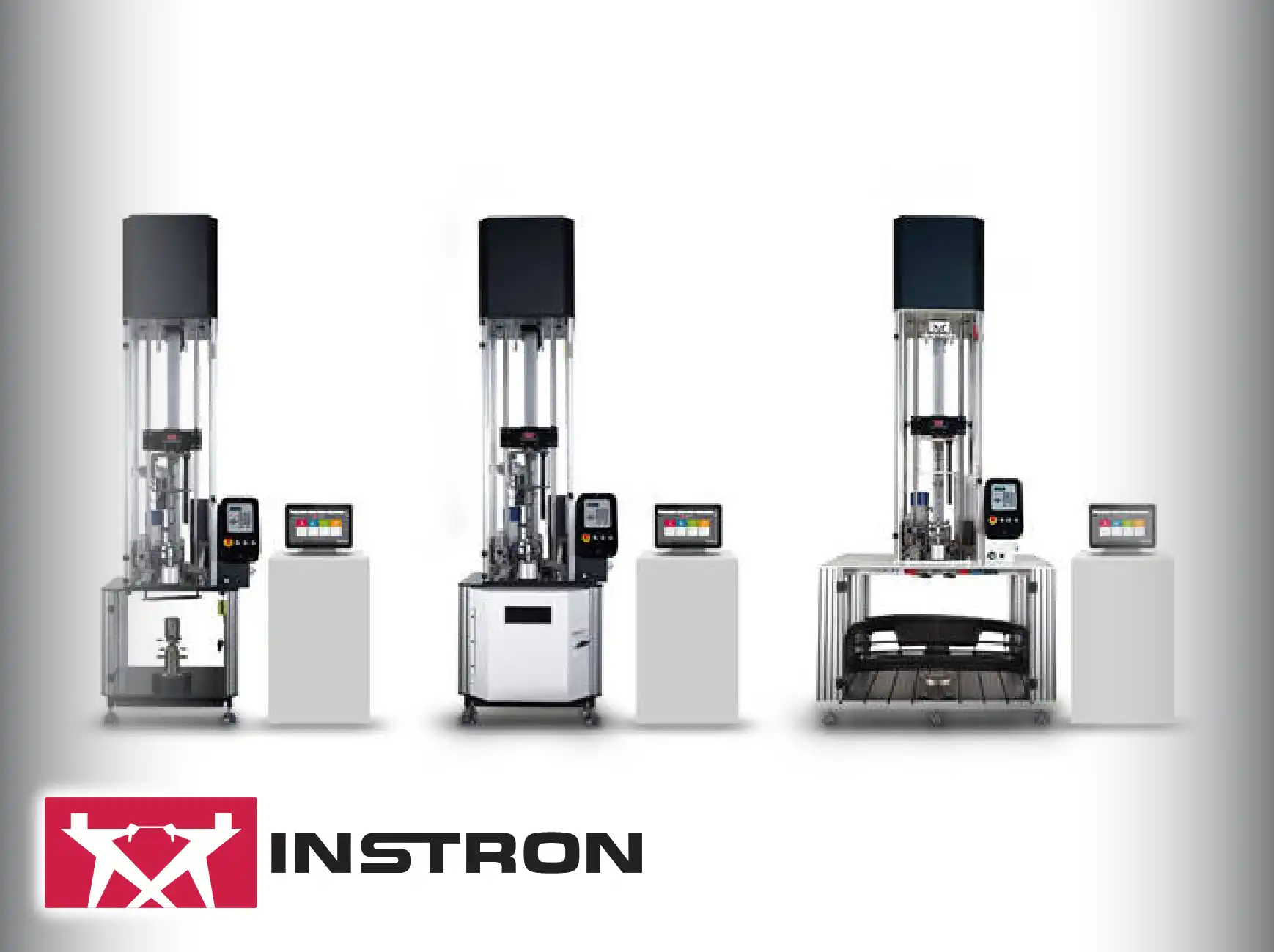

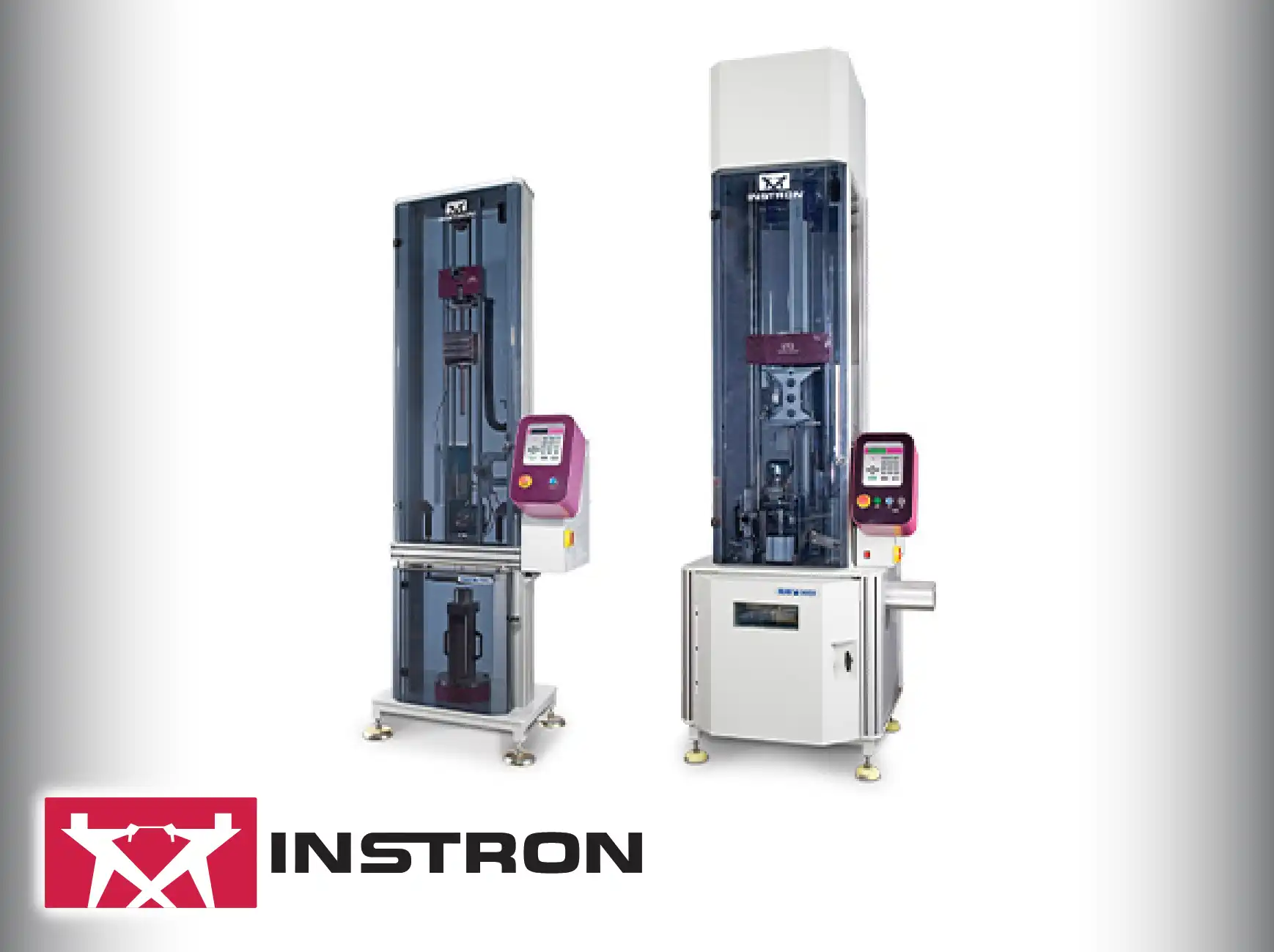

Impact drop towers are engineered with expansive test space and highly customizable fixturing options to facilitate testing of large or irregularly shaped components, which provides a versatile, centralized solution and optimizes laboratory investment by eliminating the need for multiple specialized machines.
Precision anti-rebound mechanisms and sophisticated velocity sensors are integrated to ensure accurate energy calculation by preventing the test tup from impacting the specimen multiple times, which solves the common issue of over-measuring absorbed energy in traditional systems.
To address the need for verifiable documentation, the platforms offer automated calibration routines and secure, time-stamped data logging, ensuring that all test results meet stringent regulatory requirements for traceability and audit compliance.
The capability to seamlessly integrate temperature-controlled environmental chambers allows for dynamic testing of materials at conditions simulating the extremes of cold or heat found in real-world service environments, providing data that directly addresses material performance gaps under thermal stress.
Safety is prioritized through integrated physical enclosures and interlock systems that prevent operation while the access door is open, mitigating the operational risk of injury from specimen shrapnel or flying debris during high-energy impact events.
Advanced analysis modules provide automated calculation and reporting of key fracture mechanics parameters, reducing manual data manipulation and enabling researchers to rapidly generate standardized reports for indices like GIC or impact energy values, accelerating R&D cycles.
