Linear Motor-Driven Systems
|
For High-Frequency Fatigue and Dynamic Characterization

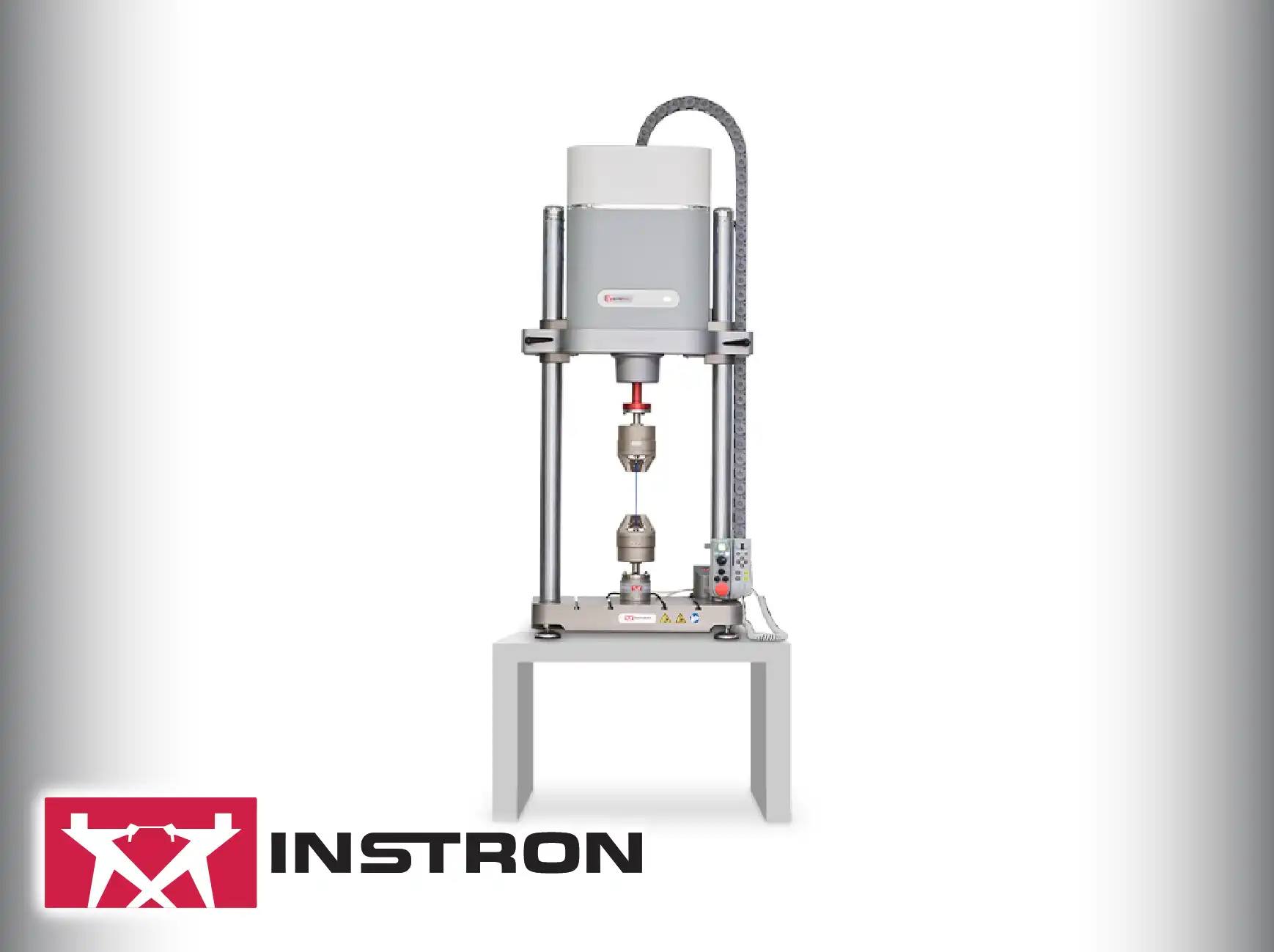

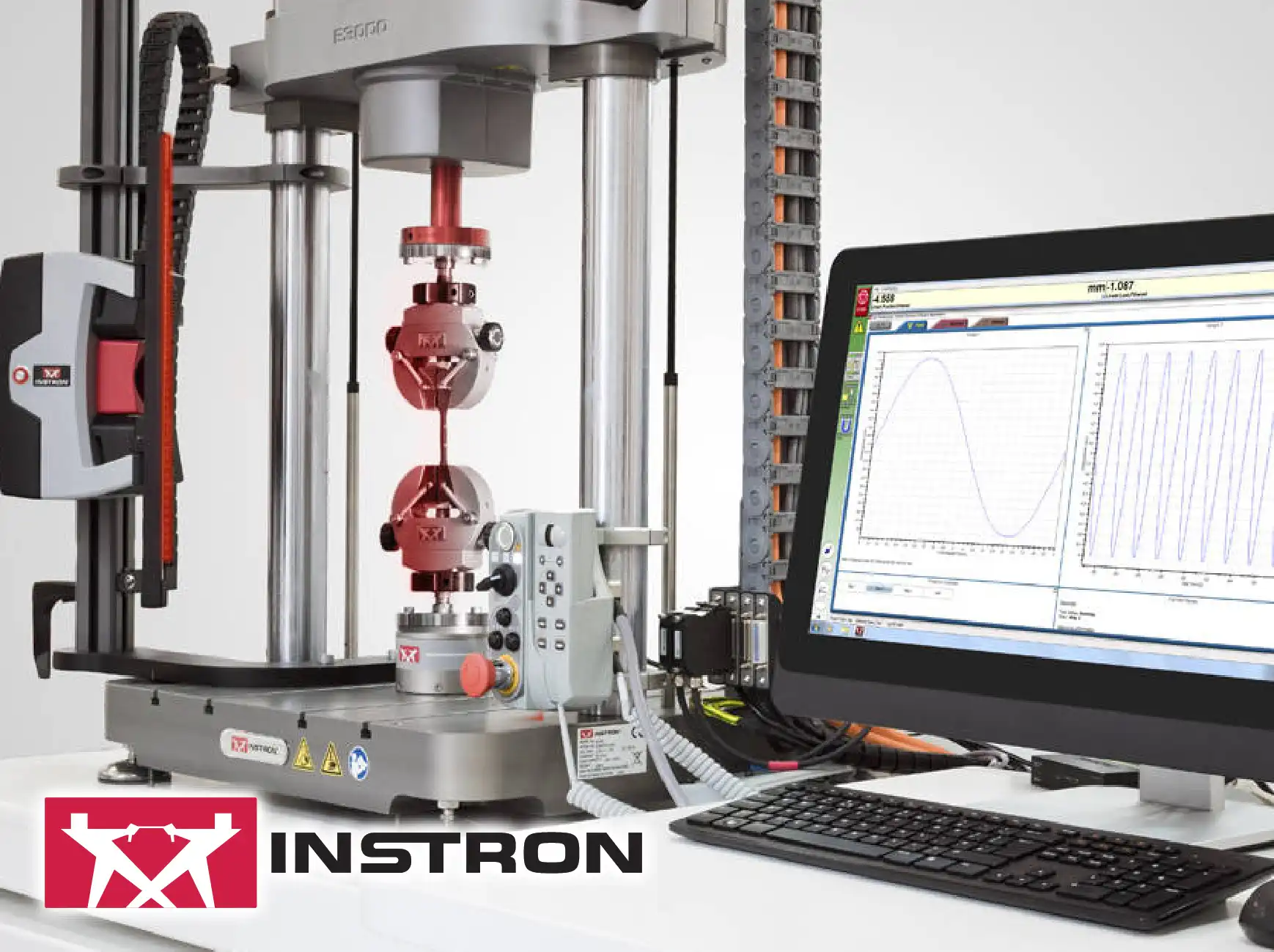

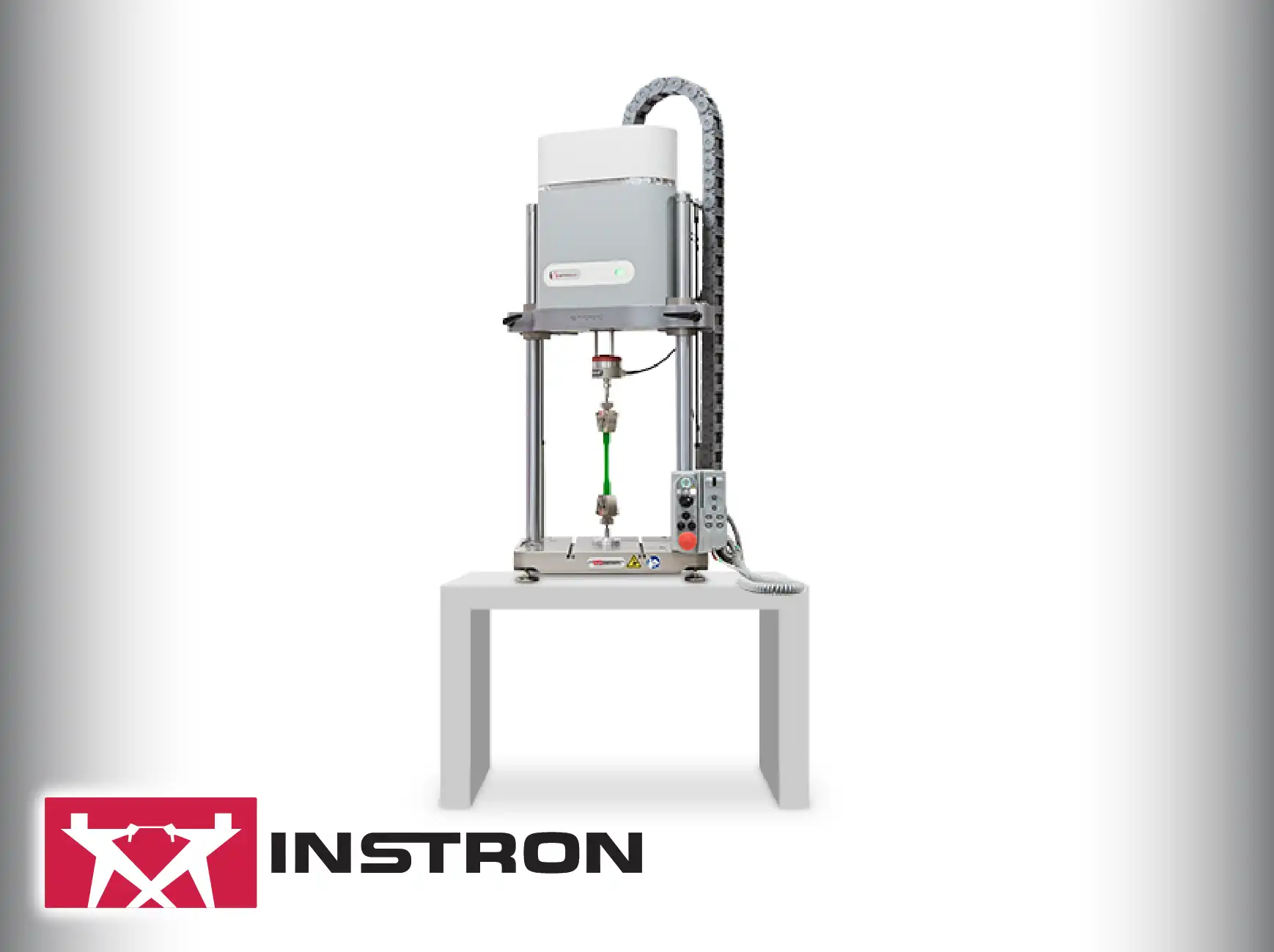

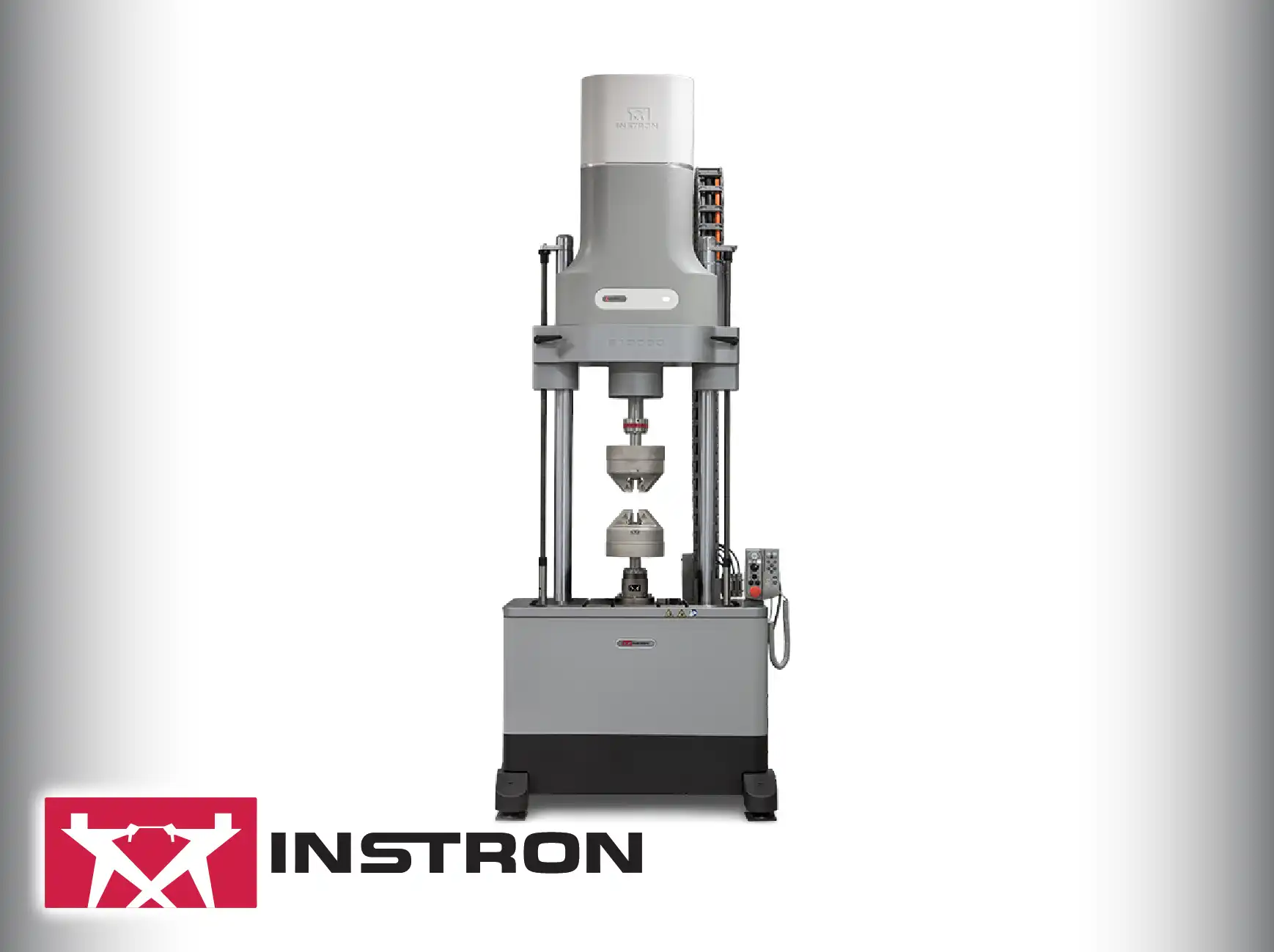

Instron ElectroPuls All-Electric Dynamic and Fatigue Test Systems.
The core advantage of the linear motor architecture is the elimination of the traditional hydraulic power unit (HPU), resulting in a zero-maintenance, zero-fluid system that is inherently clean and energy-efficient, making it ideal for clinical and laboratory environments where noise and oil contamination are unacceptable. Furthermore, the motor's responsiveness enables precise control of the load frame across a wide spectrum of frequencies and amplitudes, ensuring superior waveform fidelity even during the simulation of highly complex, multi-stage loading protocols.
The advanced drive system is managed by sophisticated digital control electronics that allow for seamless switching between force, strain, and displacement control modes during a single test sequence, providing research engineers with the flexibility to simulate highly realistic, complex in-service loading histories. The inherent stiffness and low inertia of the system contribute to its outstanding dynamic performance, allowing for accurate mechanical characterization of soft tissues, elastomers, polymers, and small components at frequencies up to 100 Hz
Many research and quality control labs are constrained by excessive noise, heat generation, and maintenance demands associated with traditional hydraulic systems. The all-electric architecture eliminates the need for oil and an HPU, resulting in silent operation and zero scheduled maintenance of the drive mechanism, significantly improving the laboratory environment and reducing long-term operational costs.
Achieving precise, artifact-free testing of soft, delicate, or biomedical samples is often compromised by the noise and force resolution limits of conventional drive systems. The linear motor provides continuous, smooth force delivery with extremely low noise floor and excellent low-force resolution, enabling high-fidelity testing of biological tissues and medical devices like stents and syringes.
Engineers often struggle to accurately replicate complex, non-sinusoidal loading profiles encountered in real-world applications (e.g., impact or non-linear ramp cycles) due to the limited bandwidth of standard fatigue machines. The high dynamic performance and responsive control electronics of this system ensure superior reproduction of custom waveforms and high-order harmonics with outstanding fidelity.
Wastage of electrical power and high utility costs are common concerns when operating power-intensive dynamic testing equipment continuously. The system is designed for high energy efficiency, utilizing power regeneration technology within the drive electronics, which significantly reduces the total power consumption compared to continuously running hydraulic pump systems.
The difficulty in mounting non-standard or small specimens and ensuring proper alignment in high-frequency machines can lead to erroneous bending moments and invalid results. The frame design offers an easily accessible and adjustable test space, compatible with a broad range of specialized fixtures for small components, ensuring strict axial alignment throughout the high-cycle fatigue process.
Running test sequences at high frequencies can be limited by internal heat generation that leads to component drift and stability issues in conventional machines. The all-electric design inherently runs cooler and relies on precision digital control to maintain thermal stability, ensuring consistent load and displacement accuracy over extended, high-frequency cycling periods.
Integrating the machine into existing laboratory control networks and data management systems can be complex due to proprietary interfaces and rigid software protocols. The control platform provides a modern, flexible interface that supports easy data exchange and network integration, streamlining the transfer of fatigue data into enterprise quality management or R&D databases.
Researchers requiring rapid iteration and flexibility during new material development are hindered by the time-consuming process of changing fixtures and test configurations on large, complex machines. The compact and modular nature of the system allows for quick and tool-less exchange of accessories, enhancing the laboratory's agility in rapidly transitioning between diverse testing protocols.
