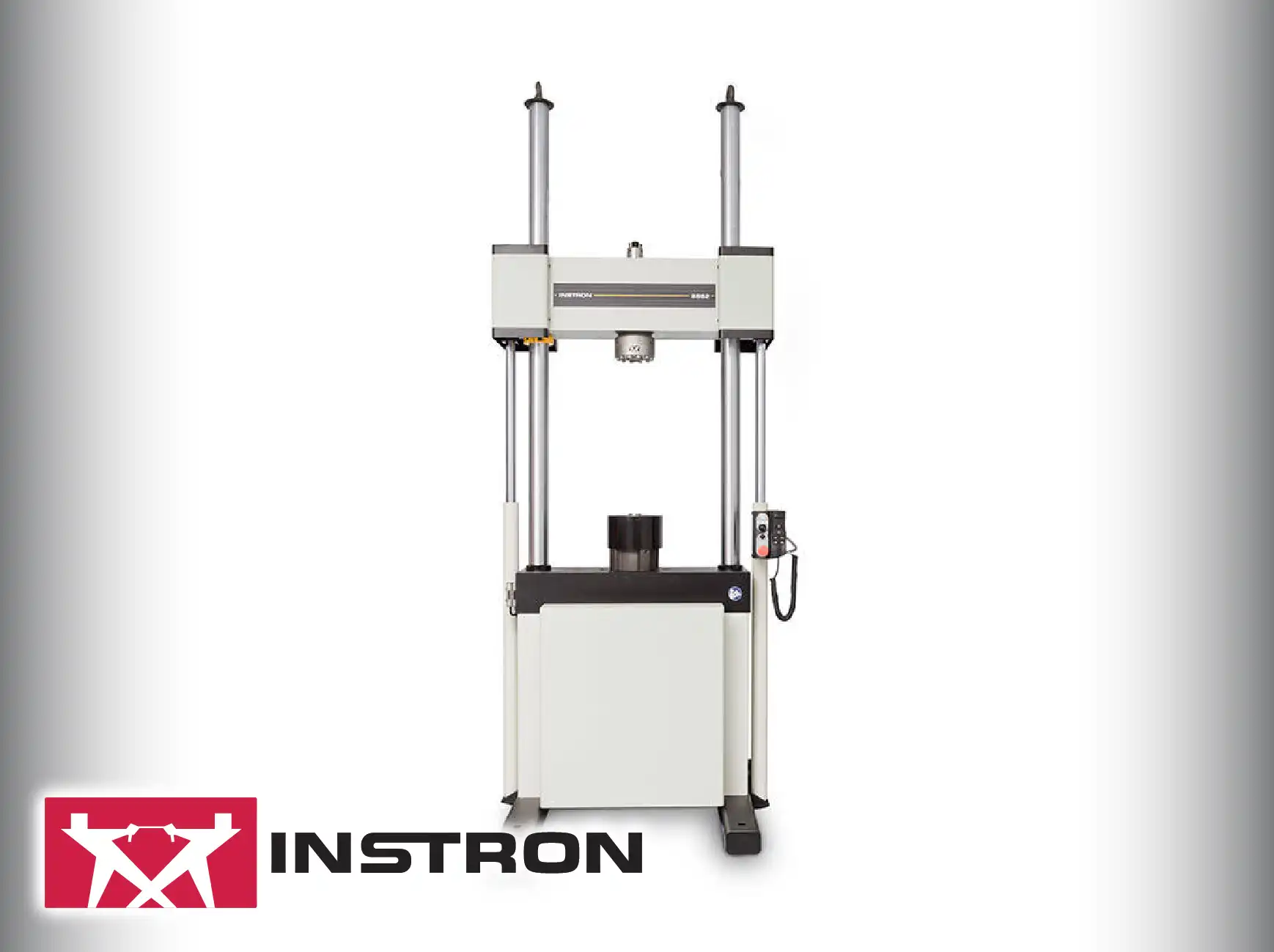

Instron Low Strain Rate Servo-Electric Systems.
The system utilizes high-resolution servo-electric drives coupled with advanced control algorithms that are specifically tuned to mitigate the stick-slip effect and maintain exceptional stability at velocities near zero, a common challenge in conventional universal testing machines. Furthermore, the inherent high system stiffness is critical to ensure that any observed displacement or change in strain is attributable to the specimen's material response rather than the compliance or deformation of the load frame itself, which would otherwise invalidate creep and stress-rupture data.

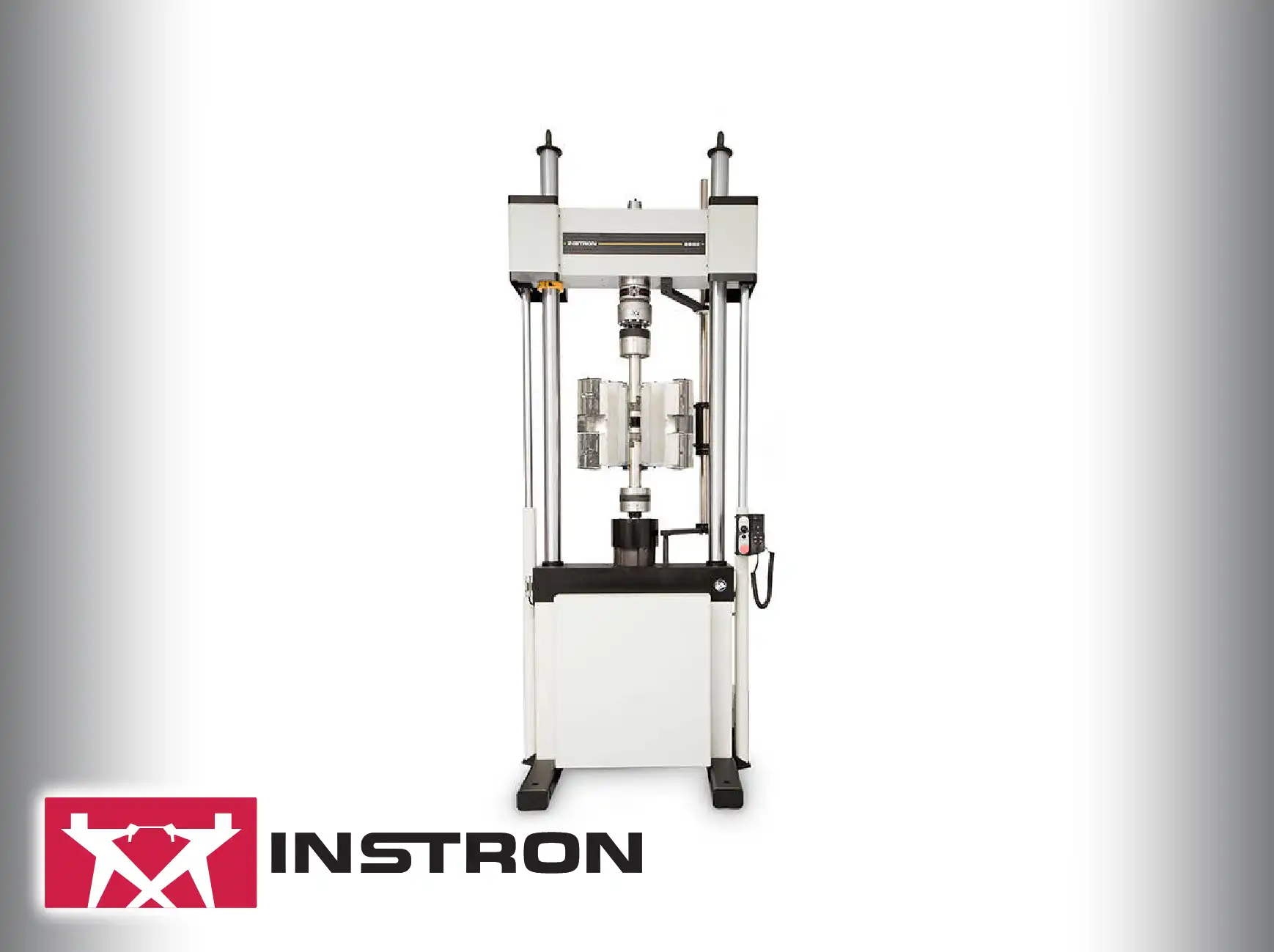

Designed for long-duration operation, the robust two-column frame incorporates features that ensure thermal and mechanical stability over extended periods, minimizing drift in the load cell reading and displacement measurement. The extensive vertical test space and accessory mounting options facilitate the seamless integration of large, high-temperature creep furnaces or environmental conditioning chambers, allowing researchers to accurately replicate the elevated temperature and stress conditions typical of power generation or aerospace applications.
Researchers performing long-term creep and stress relaxation tests frequently experience invalid data due to thermal and electronic drift in the measuring system over weeks or months. This system is engineered with highly stable electronics and specialized frame construction to ensure superior long-term stability and minimal drift, maintaining data integrity during extended testing protocols.
Achieving smooth, controlled movement at extremely low crosshead speeds (e.g., $0.0001 mm/min) without the jerky 'stick-slip' motion characteristic of standard drives compromises the accuracy of crack growth and fracture mechanics tests. The system’s high-resolution servo-electric drive is specifically designed and tuned to provide ultra-smooth, uniform motion at near-zero speeds, enabling precise control over slow crack propagation.
When testing materials for fracture toughness, the sensitivity to measurement noise and the need for extremely precise data logging are high. The control electronics offer a high signal-to-noise ratio and excellent resolution across all channels, ensuring that subtle changes in force or displacement—critical for defining key points in a fracture test—are accurately captured.
The physical integration of large, heavy creep furnaces or environmental chambers often introduces undesirable bending moments and load string misalignment. The robust, high-stiffness frame design provides superior support and inherent axial alignment, ensuring that the necessary external heating and cooling equipment can be safely and reliably installed without compromising test accuracy.
The slow pace of low strain rate testing means that any minor error or interruption can result in the loss of months of testing time, leading to significant project delays. The system incorporates advanced safety features and redundant controls to ensure continuous operation and reliable data logging throughout the extended test period, protecting the valuable data and time invested.
Analyzing the resulting data for creep or stress relaxation requires complex curve fitting and modeling, which is challenging with generic software. The integrated software provides specialized tools and pre-configured calculation methods specifically for the analysis of time-dependent phenomena, streamlining the post-test data evaluation and modeling process.
Temperature control and monitoring accuracy within a test furnace are often inconsistent, leading to non-uniform strain rates across the specimen gauge length. These systems support advanced multi-zone furnace controls and high-precision thermocouples, ensuring tight thermal uniformity and accurate temperature compensation throughout the specimen.
Laboratories performing routine low strain rate tests frequently encounter the challenge of difficulty in achieving and maintaining compliance with complex standards like those for KIC or stress-rupture. The control system facilitates the programming of standard-compliant test sequences, ensuring the correct loading profile and data calculation protocols are automatically executed.
