Customized Electro-Mechanical Platforms
|
For Niche Material Characterization

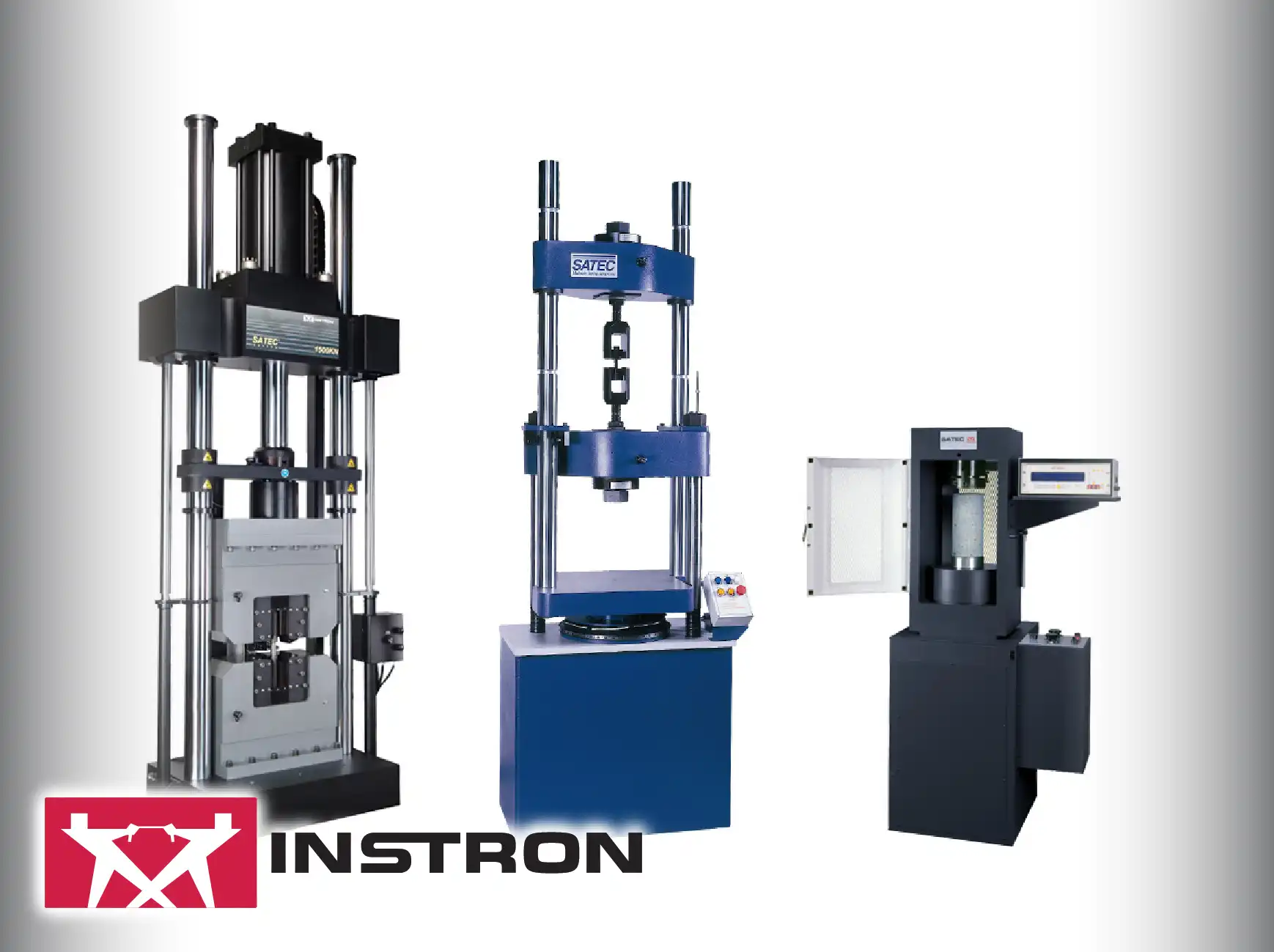

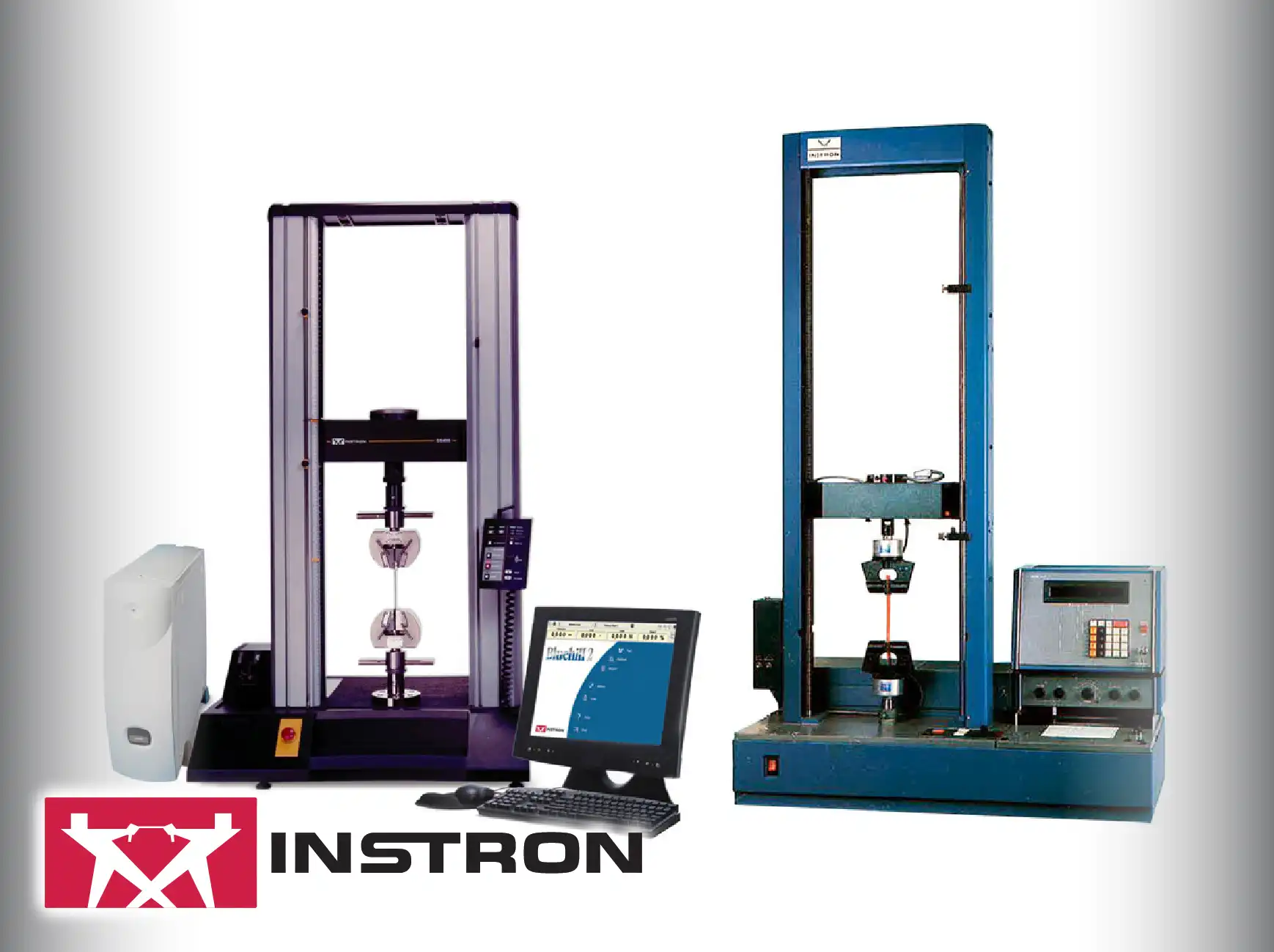

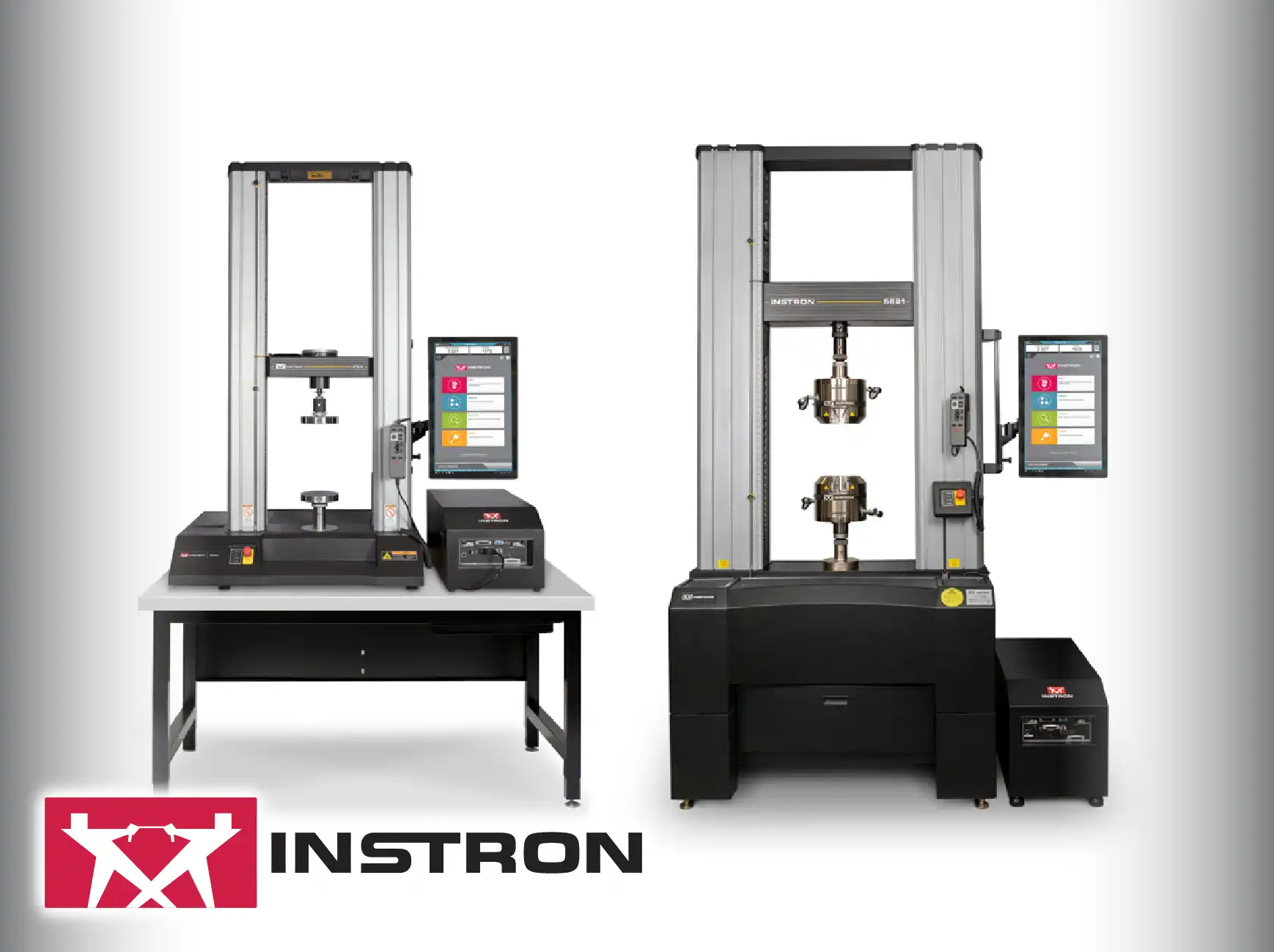

Instron Specialty Systems
The design often involves modular adaptation of standard high-performance control electronics and software to manage highly specialized mechanical setups, ensuring that the core benefits of high-speed data acquisition and precise servo-control are maintained across unconventional test geometries. Critical components include custom grips and fixtures designed to secure specimens with non-standard forms (e.g., pins, tubing, adhesive joints, complex fasteners) without inducing premature or erroneous failure, thereby enhancing the validity and repeatability of results in niche applications.
A key technical focus of these systems is the ability to integrate environmental conditioning chambers or specialty devices directly into the test space. This allows for mechanical property evaluation under non-ambient conditions, such as physiological temperature and fluid immersion (bio-baths) for medical devices, or extremely high/low temperatures for aerospace components. This integrated approach ensures the material's response is measured precisely within its intended operating environment, eliminating the variability and complexity associated with external, non-synchronized environmental conditioning.
The lack of suitable gripping methods or standard fixtures presents a major obstacle to obtaining valid data for uniquely shaped components or finished products. The Specialty Systems address this by providing custom-engineered grips and fixtures developed specifically to interface with complex geometries (like auto-injectors, surgical needles, or printed circuit boards), ensuring superior specimen alignment and failure at the intended test point rather than at the grip interface.
Many specialized applications require characterizing material response under dynamic loading or non-axial forces (e.g., twisting), which exceeds the capability of standard universal testers that are limited to uniaxial tension/compression. These custom systems provide the capability for torsional testing, biaxial loading, or high-speed impact testing to accurately simulate real-world service conditions that involve complex, multi-dimensional stresses.
When testing materials intended for use in challenging environments, such as medical implants or high-heat automotive components, the inability to precisely match the testing environment to the operational environment yields data with low predictive value. The integrated systems solve this by incorporating specialized environmental chambers or bio-baths with precise temperature and medium control, guaranteeing that the mechanical properties are determined under true application conditions.
Developing unique test methods for novel materials or components can be hindered by inflexible software platforms that lack the necessary customization tools. The accompanying software is designed to be highly flexible, allowing R&D engineers to create entirely new, multi-stage testing sequences with custom control parameters and calculation algorithms tailored exactly to the needs of the specialized application.
Laboratories that perform a wide variety of niche tests often find themselves having to purchase multiple single-purpose machines, resulting in high capital expenditure and increased maintenance complexity. The modular architecture of the Specialty Systems often allows a single core frame to be rapidly adapted with different specialized kits (e.g., changing from a torsion setup to an adhesive peel setup), maximizing the utility of the capital equipment investment.
In some delicate applications, such as the testing of fine wires or thin films, the high internal friction and load cell hysteresis of general-purpose machines introduce unacceptable levels of measurement noise and inaccuracy at low force levels. Specialty configurations may utilize ultra-sensitive low-force transducers and precise guidance mechanisms to ensure high resolution and superior accuracy, even when measuring forces in the milli-Newton range.
Analyzing the structural integrity and fatigue life of complex assemblies or joints requires specialized testing that goes beyond simple static failure, which is a major constraint of standard systems. These custom solutions enable low-cycle fatigue or cyclic testing on final products or sub-assemblies (like welded joints or flexible tubing) under application-relevant loading patterns, providing the necessary durability data for product validation.
The lack of robust, published standards for emerging material testing (e.g., new battery components or additive manufactured materials) makes validating test procedures challenging. Specialty Systems are often developed in collaboration with industry groups, providing an established, validated testing methodology and platform even where formal regulatory standards have yet to be published.
