Laboratory Rotary Evaporation

Dynamics of Rotary Distillation and Surface Area Optimization

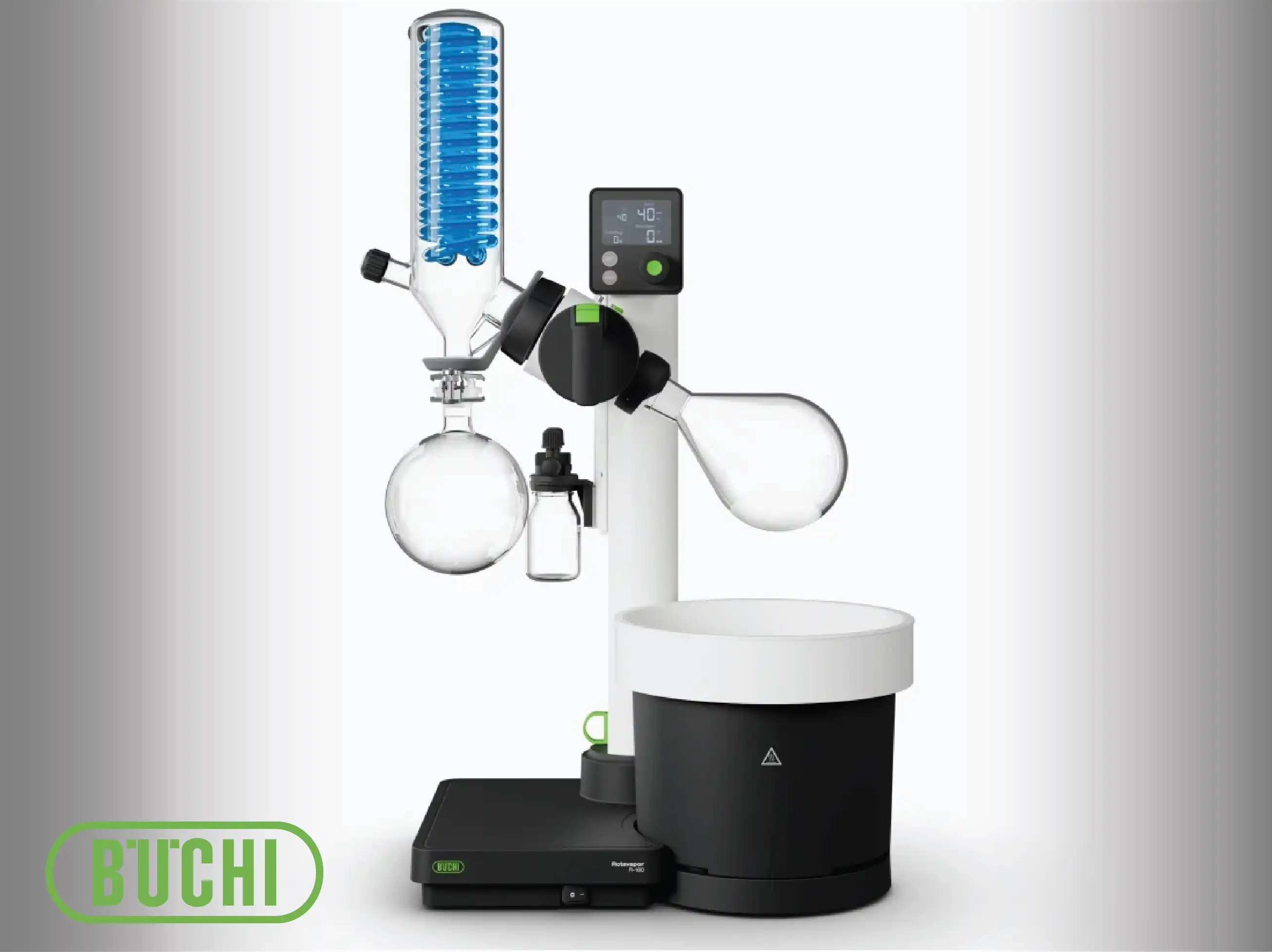

The technical efficiency of laboratory evaporation is primarily driven by the rotation of the distillation flask. By rotating the flask within a heating bath, the system forces the sample to form a thin liquid film over the entire inner surface of the glass. This process significantly increases the surface area exposed to the vacuum and heat, which accelerates the rate of evaporation compared to static distillation. The mechanical rotation also ensures continuous mixing of the sample, preventing localized overheating and minimizing the risk of "bumping," thereby maintaining a stable and efficient distillation rate for a variety of solvent polarities.

Precision Heating Bath Management

Heating baths in these systems are designed to provide uniform thermal energy to the distillation flask. These baths support both water and oil as heating media, covering a broad temperature range suitable for low-boiling solvents and high-boiling residues alike. Technical safety is prioritized through integrated overflow drains and secondary thermal cut-outs that prevent overheating. The bath’s geometry is optimized to accommodate various flask sizes, ensuring maximum heat transfer efficiency and precise temperature stability, which is critical for protecting thermolabile compounds during the evaporation process.

Advanced Vacuum Regulation and Hysteresis Control

Effective evaporation depends on the precise regulation of internal pressure. Buchi systems utilize digital vacuum controllers that communicate directly with the vacuum pump to maintain a constant pressure level. By minimizing hysteresis—the fluctuation around a set pressure point—the system ensures a steady boiling process. Advanced sensors allow for automatic detection of the solvent's boiling point, adjusting the vacuum dynamically to match the vapor pressure. This prevents sudden pressure drops that could lead to sample loss and ensures that the distillation proceeds under the most efficient thermodynamic conditions.

High-Performance Condensation and Solvent Recovery

The condensation stage is critical for both analytical yield and environmental protection. Buchi offers a variety of condenser geometries, including vertical and cold trap designs, tailored to different solvent types and space requirements. These condensers are engineered to maximize the contact time between the solvent vapor and the cooling surface. When paired with a recirculating chiller, the system maintains a constant cooling temperature, ensuring nearly 100% solvent recovery. This high efficiency reduces laboratory operating costs and prevents hazardous vapors from entering the fume hood or the atmosphere.

Glassware Engineering and Safety Coatings

Safety in laboratory evaporation is addressed through high-quality borosilicate glassware, which is resistant to thermal shock and chemical corrosion. To further protect the operator, Buchi provides glassware with specialized plastic coatings (P+G). This coating acts as a protective layer that contains glass fragments and the sample in the event of an accidental breakage or implosion under vacuum. Technically, this does not affect the heat transfer or visibility of the process but adds a critical safety margin when handling volatile or toxic substances during routine distillations.

Automated Distillation with Vapor Temperature Sensing

Automation in laboratory evaporation is facilitated by vapor temperature sensors that enable the "AutoDest" function. This technology allows the system to monitor the temperature of the vapor as it enters the condenser. By analyzing the temperature profile, the controller can automatically start, adjust, and terminate the distillation process once the solvent has been completely removed. This automation reduces the need for constant manual monitoring and ensures that the sample is never exposed to heat longer than necessary, preserving the integrity of sensitive analytes.

Modular Integration of Pumps and Chillers

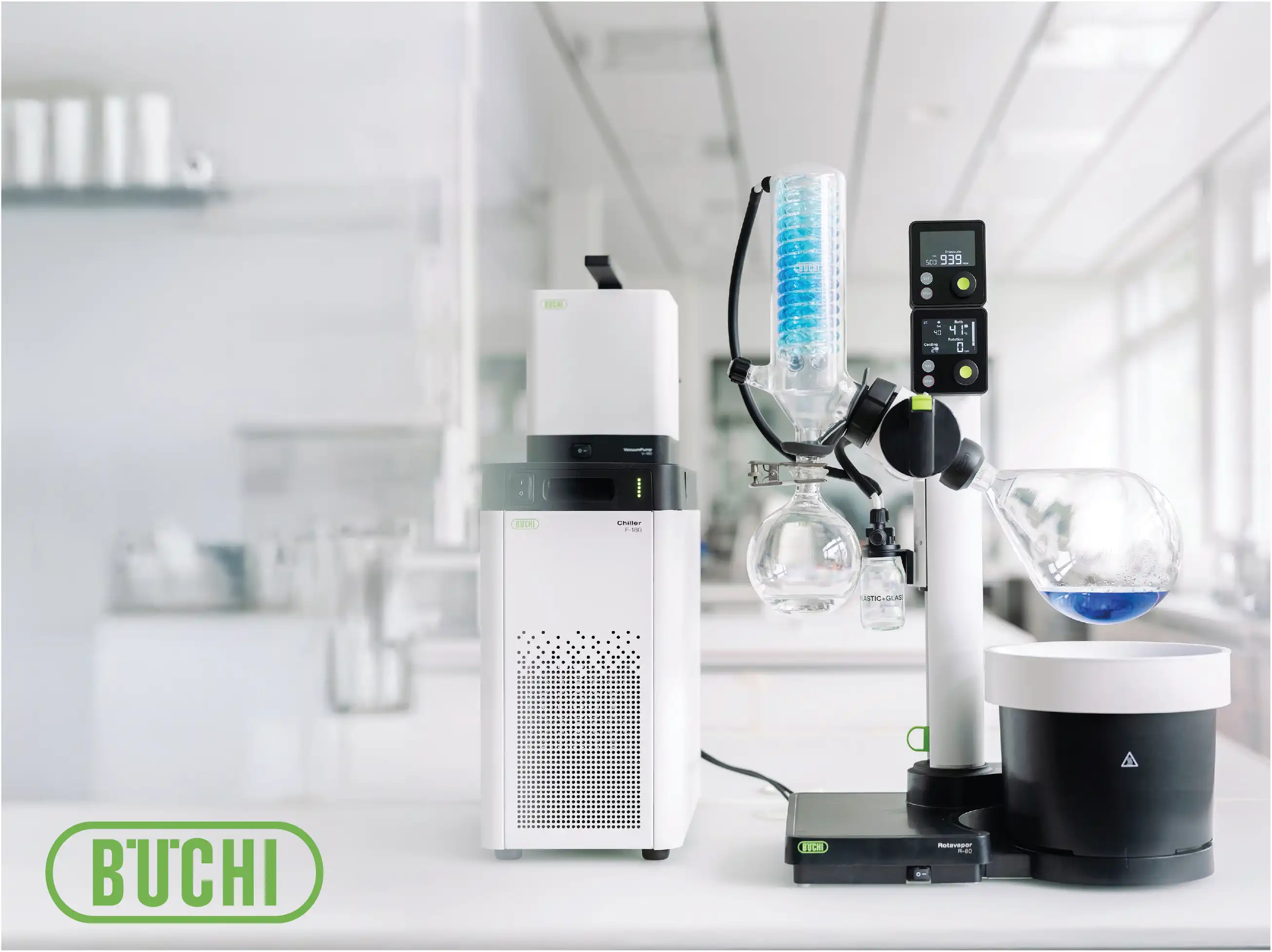

A complete laboratory evaporation system is a technical assembly of modular components that function as a single unit. The interface acts as the central hub, synchronizing the heating bath, rotation drive, vacuum pump, and chiller. This integration allows for one-touch operation where all parameters—such as rotation speed, bath temperature, and vacuum level—are managed from a single screen. This systemic synergy optimizes power consumption and water usage, as the pump and chiller only operate at the capacities required by the specific distillation task.

Ergonomic Flask Handling and Motorized Control

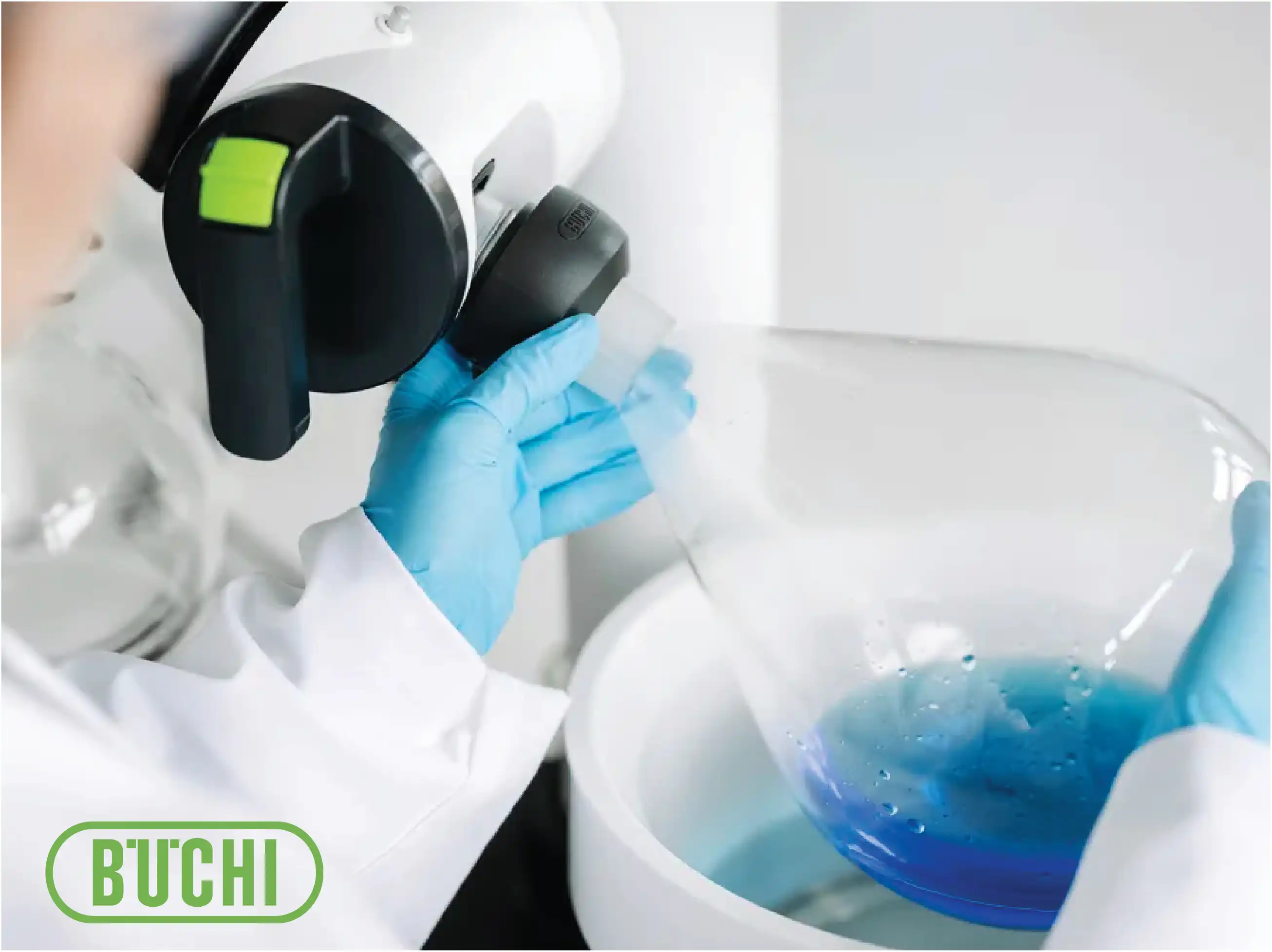

Technical ergonomics are vital for efficiency and sample safety. Buchi evaporators feature specialized flask clips that facilitate the easy attachment and removal of distillation flasks. Motorized lift systems allow for the precise positioning of the flask within the heating bath, with automated lift-up functions that remove the flask from the heat in the event of a power failure. This prevent the sample from over-boiling or degrading. These features, combined with intuitive control dials, provide the operator with fine-tuned control over the physical parameters of the distillation.
