Offline Automated Dissolution Systems
|
Include a dissolution bath, a pump and a fraction collector

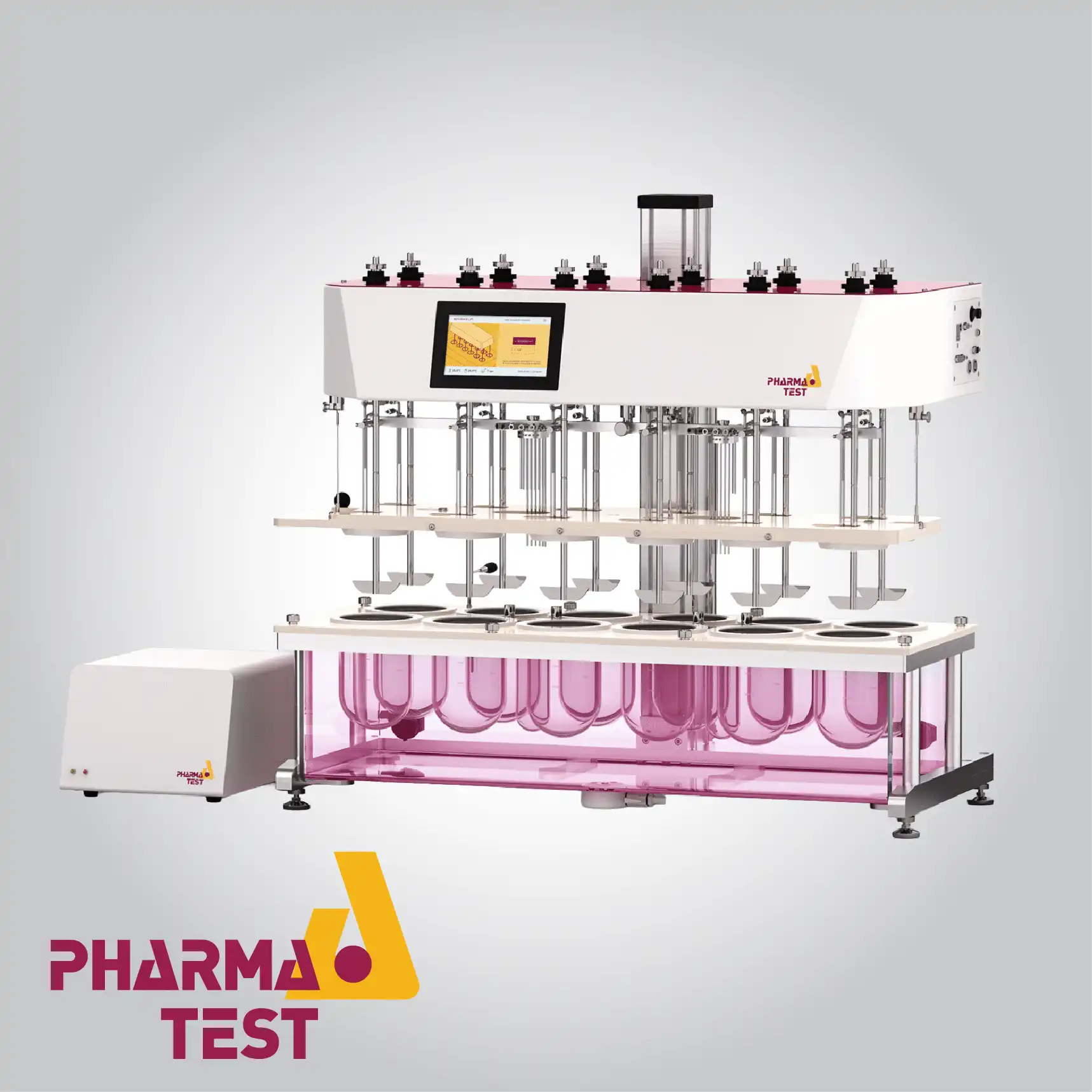

Pharma Test Offline Automated Dissolution Systems
Pharma Test’s broad range of Offline Automated Tablet Dissolution Systems:
DFC-620SP Semi-Automated Dissolution Test System
The offline DFC systems include a fraction collector or an auto sampler which will collect the sampled dissolution media. The semi-automated DFC-620SP system is composed of a PTWS 620 staggered stirrer start dissolution bath with built-in individual vessel centering, full tubing installation in PTFE including either in-situ sampling probes or the EPE-620 auto sampling system, a PT-SP8 syringe pump, and a PTFC-2/8 fraction collector. In this configuration the sampling probes are either always immersed into the media (in-situ) or removed after sampling (EPE-620 system). Both procedures are widely used.
DSR-M Dissolution Sampling Robot
The DSR-M dissolution sampling robot is designed specifically for the sample transfer and sample processing from a six to twelve vessel dissolution bath. This unique versatile instrument allows samples to be collected over very short time intervals. The DSR-M can be equipped to collect, dilute or process samples for following UV-Visible or HPLC measurements. It can also be used for dissolution medium replenishment to conform to USP/EP volume loss rules.
DFC-1220SP Semi-Automated Dissolution Test System
The offline DFC systems include a fraction collector or an auto sampler which will collect the sampled dissolution media. The semi-automated DFC-1220SP system is composed of a PTWS 1220 staggered stirrer start dissolution bath with built-in individual vessel centering, full tubing installation in PTFE including either in-situ sampling probes or the EPE-1220 auto sampling system, 2 PT-SP8 syringe pumps, and a PTFC-16 fraction collector. In this configuration the sampling probes are either always immersed into the media (in-situ) or removed after sampling (EPE-1220 system). Both procedures are widely used.
DFC-120SP Semi-Automated Dissolution Test System
The offline DFC systems include a fraction collector or an auto sampler which will collect the sampled dissolution media. The semi-automated DFC-120SP system is composed of a PTWS 120D or PTWS 120S staggered stirrer start dissolution bath with built-in individual vessel centering, full tubing installation in PTFE including in-situ sampling probes, a PT-SP8 syringe pump, and a PTFC-2/8 fraction collector. In this configuration the sampling probes are always immersed into the media (in-situ). This procedure is widely used.
DFC-820SP Semi-Automated Dissolution Test System
The offline DFC systems include a fraction collector or an auto sampler which will collect the sampled dissolution media. The semi-automated DFC-820SP system is composed of a PTWS 820D staggered stirrer start dissolution bath with built-in individual vessel centering, full tubing installation in PTFE including either in-situ sampling probes or the EPE-820 auto sampling system, a PT-SP8 syringe pump, and a PTFC-2/8SP fraction collector. In this configuration the sampling probes are either always immersed into the media (in-situ) or removed after sampling (EPE-820 system). Both procedures are widely used.
PT-SP Precise Multi Syringe Pump
The PT-SP multi-syringe pump is designed specifically for parallel sample withdrawal and dosage of media from a dissolution bath into open vials inside a fraction collector. It is equipped with up to 8 replaceable 10ml high precision glass syringes. Each syringe is connected to a 3-way pinch valve for media flow control. The drive of the syringes is carried out simultaneously by a stepper motor. All syringes are rigidly connected to the common sturdy drive bar.
