IKA Dry Block Heater
|
Technical Excellence in Anhydrous Laboratory Heating

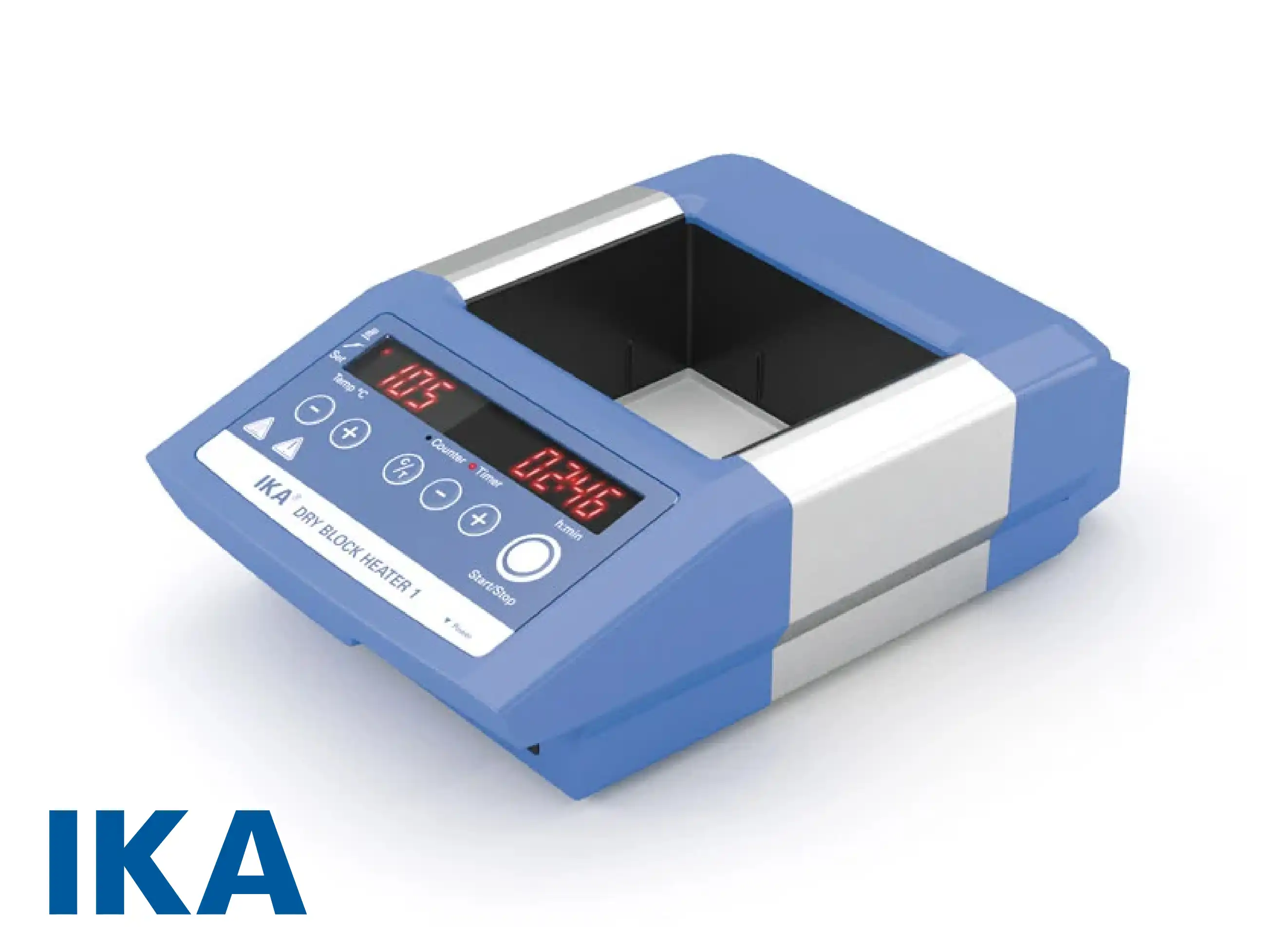

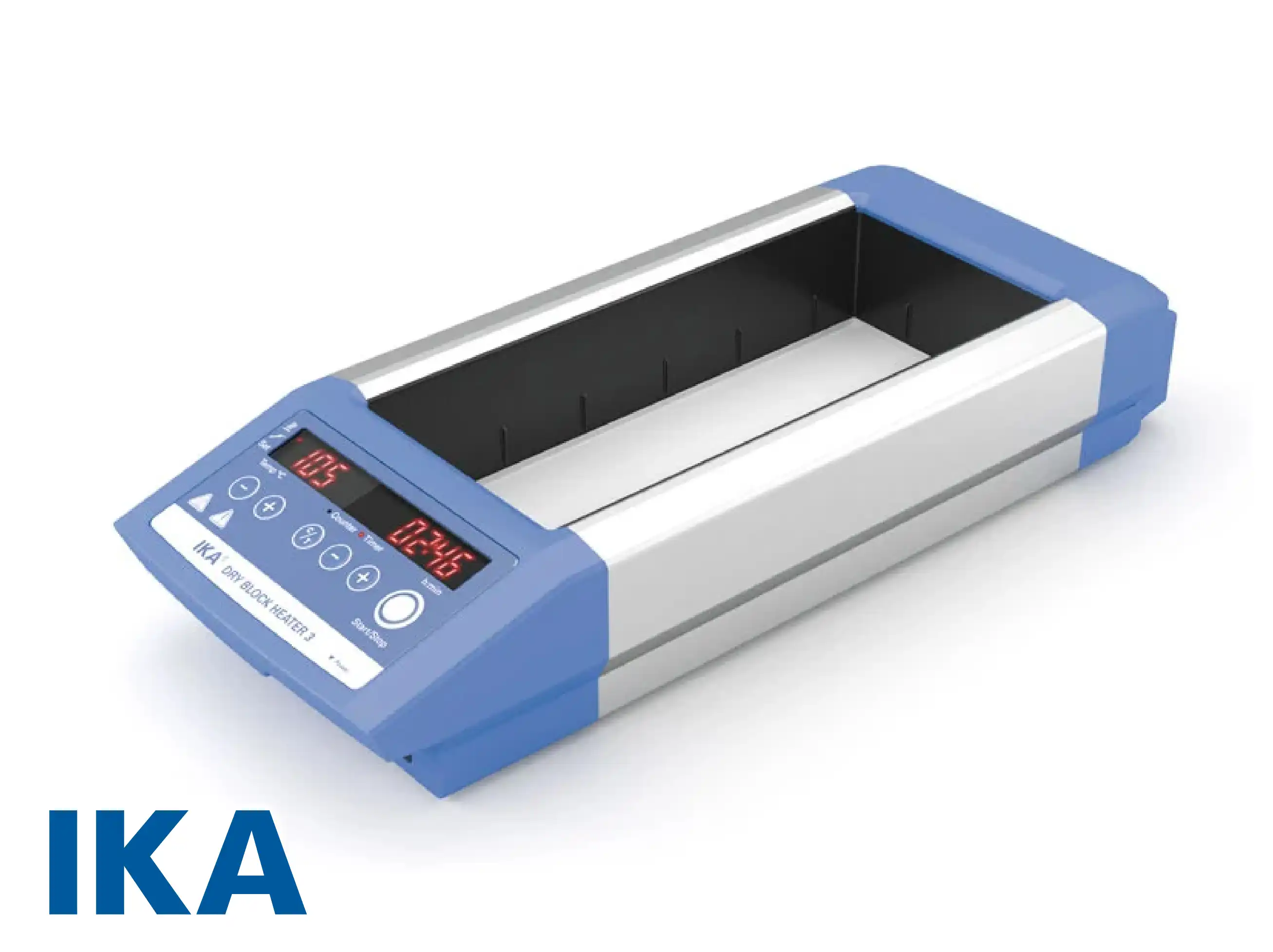

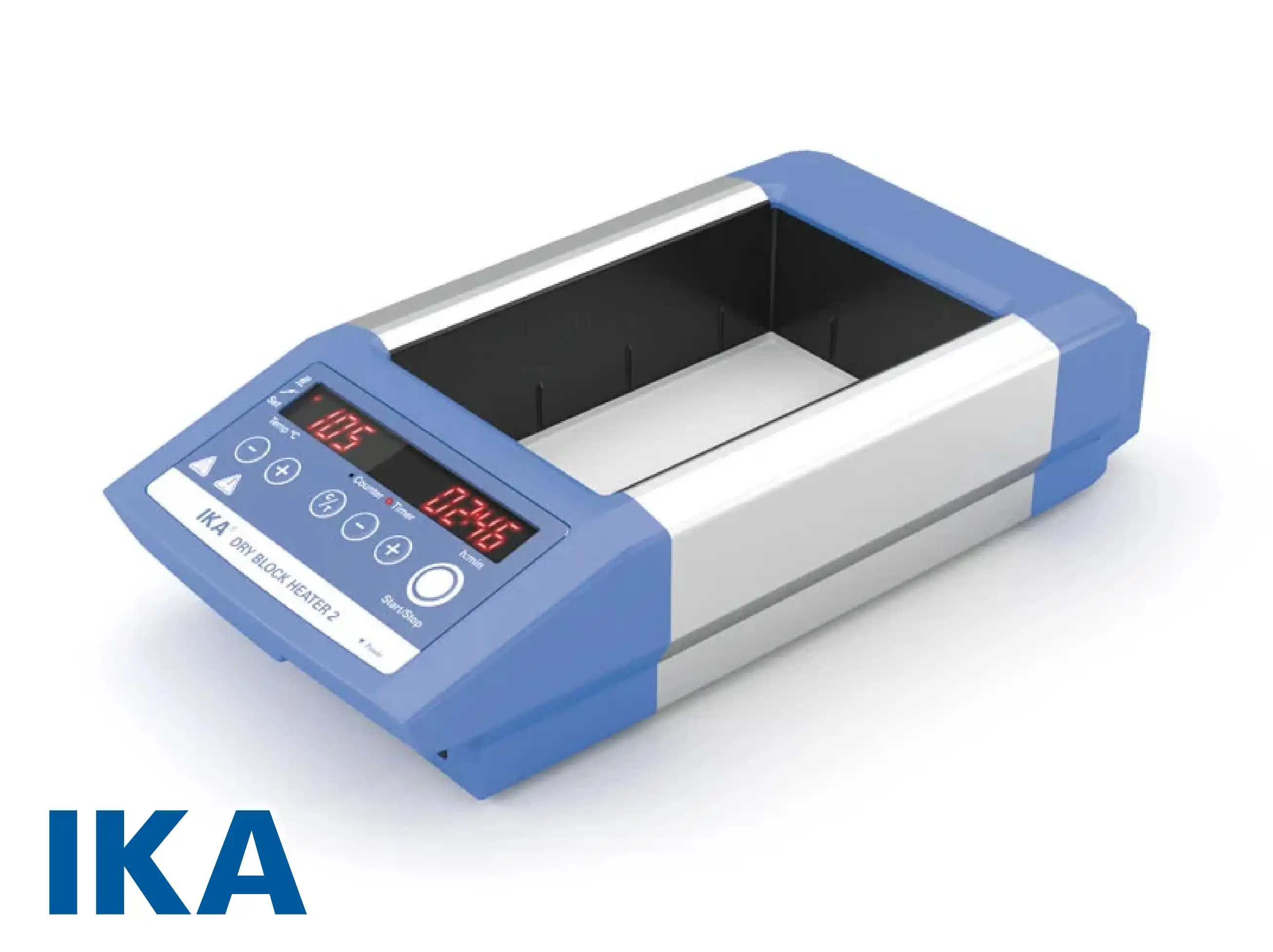

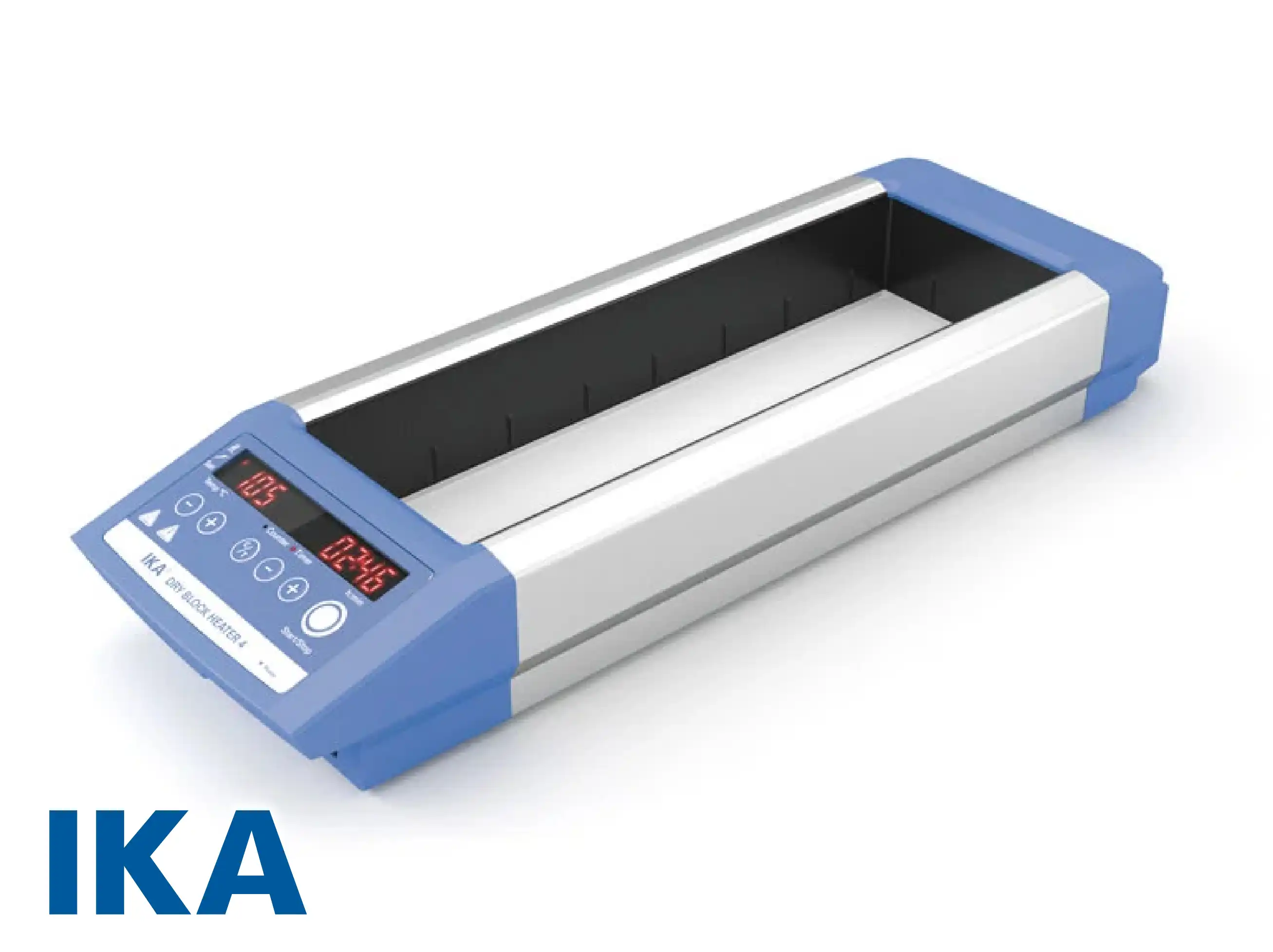

IKA Dry Block Heater
Safety and process monitoring are fundamental to the technical design of IKA's dry heating systems. The instruments feature integrated safety circuits that monitor the internal temperature and provide overheat protection to safeguard both the sample and the laboratory environment.
Digital interfaces, including high-resolution LED or LCD displays, allow for the precise setting of target temperatures and integrated timers for standardized incubation periods. Additionally, the support for external temperature sensors (such as PT 1000) enables direct monitoring of the sample or block temperature, ensuring that the actual thermal parameters align strictly with the programmed setpoints for validated laboratory workflows.
Precision Electronic Temperature Regulation
Technically, IKA dry block heaters utilize sophisticated electronic controllers to regulate the power delivered to the heating elements. This microprocessor-driven logic ensures that the set temperature is reached rapidly and maintained with high stability, typically within pm 0.1 K. This technical precision is essential for molecular biology protocols where even minor temperature deviations can affect the efficiency of enzymatic reactions or the specificity of DNA hybridization.
Modular Interchangeable Aluminum Blocks for Versatility
The technical flexibility of the dry block heater is achieved through its modular block system. These blocks are manufactured from high-grade aluminum to ensure optimal heat transfer. Technically, the blocks are precision-drilled to fit specific vessel geometries, including microplates, PCR tubes, and various sizes of centrifuge tubes. This ensures maximum contact between the tube wall and the block, facilitating efficient thermal conduction and uniform heating of the sample.
Integrated Safety Circuits and Overheat Protection
To ensure operational safety, these instruments are equipped with independent safety circuits. Technically, a maximum safety temperature can be set to prevent accidental overheating. If the system detects a temperature overshoot or a failure in the primary control loop, the safety circuit automatically disconnects the power. This technical safeguard is vital for long-term incubation tasks and prevents the degradation of thermally sensitive reagents.
External Temperature Sensor Integration (PT 1000)
For applications requiring the highest level of accuracy, IKA dry block heaters support the connection of an external PT 1000 temperature sensor. Technically, this sensor can be placed directly into a reference sample or a dedicated hole in the aluminum block. The control system then uses the feedback from this external probe to adjust the heating output, ensuring that the actual temperature at the sample level corresponds exactly to the digital setpoint.
High Thermal Uniformity Across All Sample Positions
A critical technical requirement for dry heating is the uniformity of temperature across the entire block. IKA's engineering ensures that the heating elements are positioned to provide balanced thermal energy distribution. Technically, this minimizes the temperature gradient between the center and the edges of the block, ensuring that all samples—regardless of their position—are incubated under identical thermal conditions, which is a prerequisite for high-throughput screening.
Digital Interface and Timer Functions for Process Control
Modern laboratory workflows require precise timing and documentation. These heaters feature digital interfaces that display both the set and actual temperatures. Technically, the integrated timer allows for the programming of incubation periods, after which an acoustic signal is triggered or the heating is deactivated. This automation reduces manual monitoring and ensures that thermal exposure is strictly controlled according to the experimental protocol.
Robust Structural Design and Chemical Resistance
The technical durability of IKA dry block heaters is reflected in their robust housing and high-quality materials. The exterior is designed to be resistant to common laboratory chemicals and easy to clean. Technically, the internal heating chamber is well-insulated to prevent heat loss and to protect the internal electronic components from high temperatures. This rugged construction ensures a long service life even in heavy-duty industrial or research environments.
Precise Calibration and Reproducibility of Results
To maintain technical integrity over time, these heaters allow for precise calibration against certified thermometers. This technical feature enables users to compensate for any minor thermal offsets, ensuring that the instrument continues to deliver accurate results. This calibration capability is essential for laboratories operating under GLP/GMP standards, where the reproducibility of sample preparation parameters is a mandatory technical requirement.
